FBGN Series Gooseneck Deck Over Trailer

Bed Width: 102′
Bed Length: 26′-53′
GVWR: 23,000-36,800 lbs
GAWR: 10,000-16,000 lbs/axle
Midsota FBGN Series Deck Over Flatbed Trailer Front

5' Beavertail

Ensures easy loading and unloading of heavy equipment.

Green Treated Deck

Offers superior protection against weather damage, extending trailer lifespan.

Twin Jumbo Ramp Upgrade

Provides secure, quick, and effortless equipment loading.

Slipper Spring Suspension

Enhances stability and comfort by reducing trailer sway and shock.

FBGN Series Gooseneck Deck Over Trailer

The FBGN Series deck over trailer from Midsota offers unmatched versatility and durability for heavy-duty hauling. Engineered as a rugged gooseneck trailer, it features a reinforced flatbed trailer design ideal for construction, agriculture, and commercial use. Built with reliability in mind, the FBGN Series delivers consistent performance under demanding conditions.

Key Benefits

5' Beavertail

Ensures easy loading and unloading of heavy equipment.

Green Treated Deck

Offers superior protection against weather damage, extending trailer lifespan.

Twin Jumbo Ramp Upgrade

Provides secure, quick, and effortless equipment loading.

Slipper Spring Suspension

Enhances stability and comfort by reducing trailer sway and shock.

Explore This Trailer

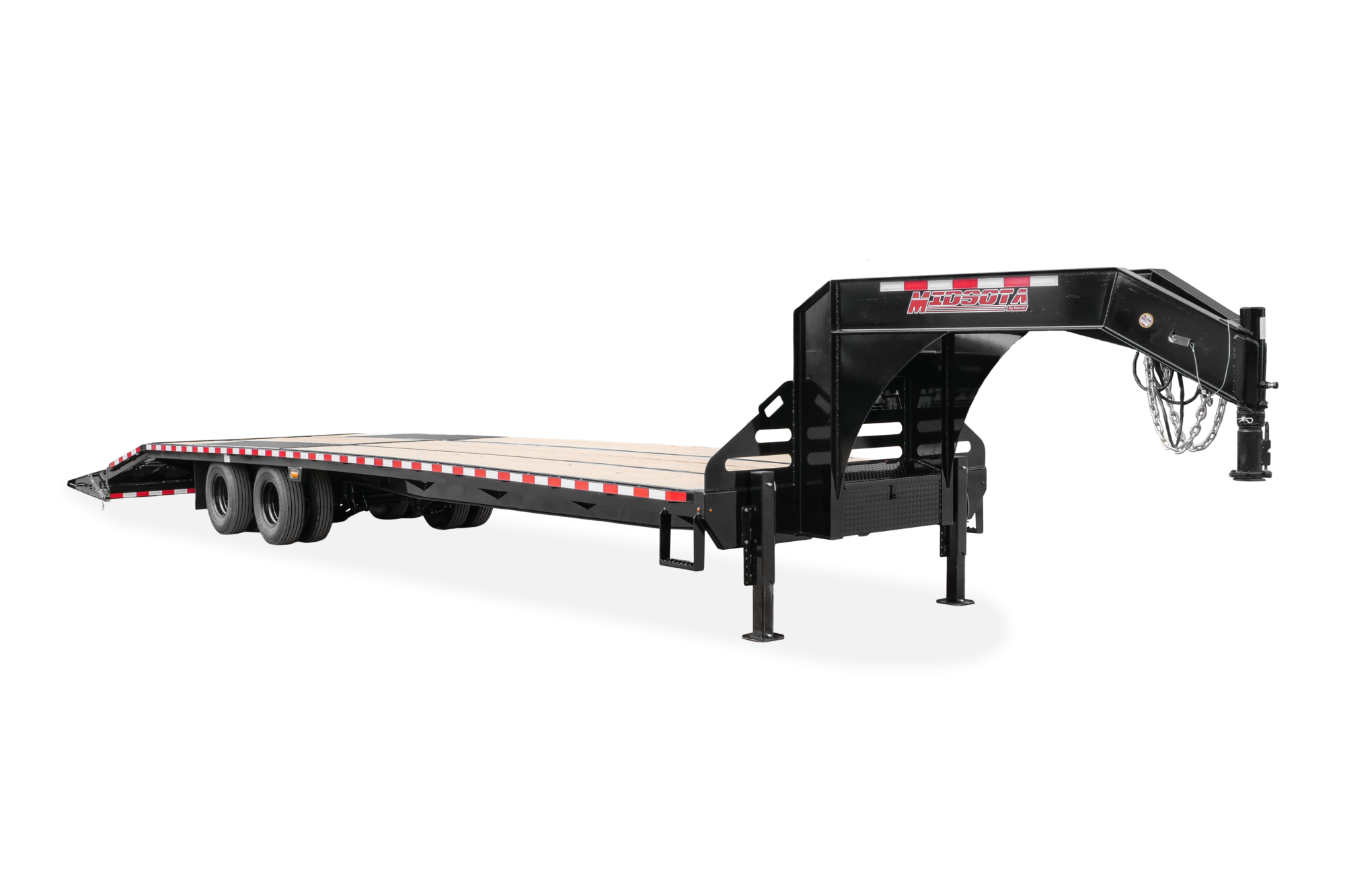

Midsota FBGN Series Deck Over Flatbed Trailer Front

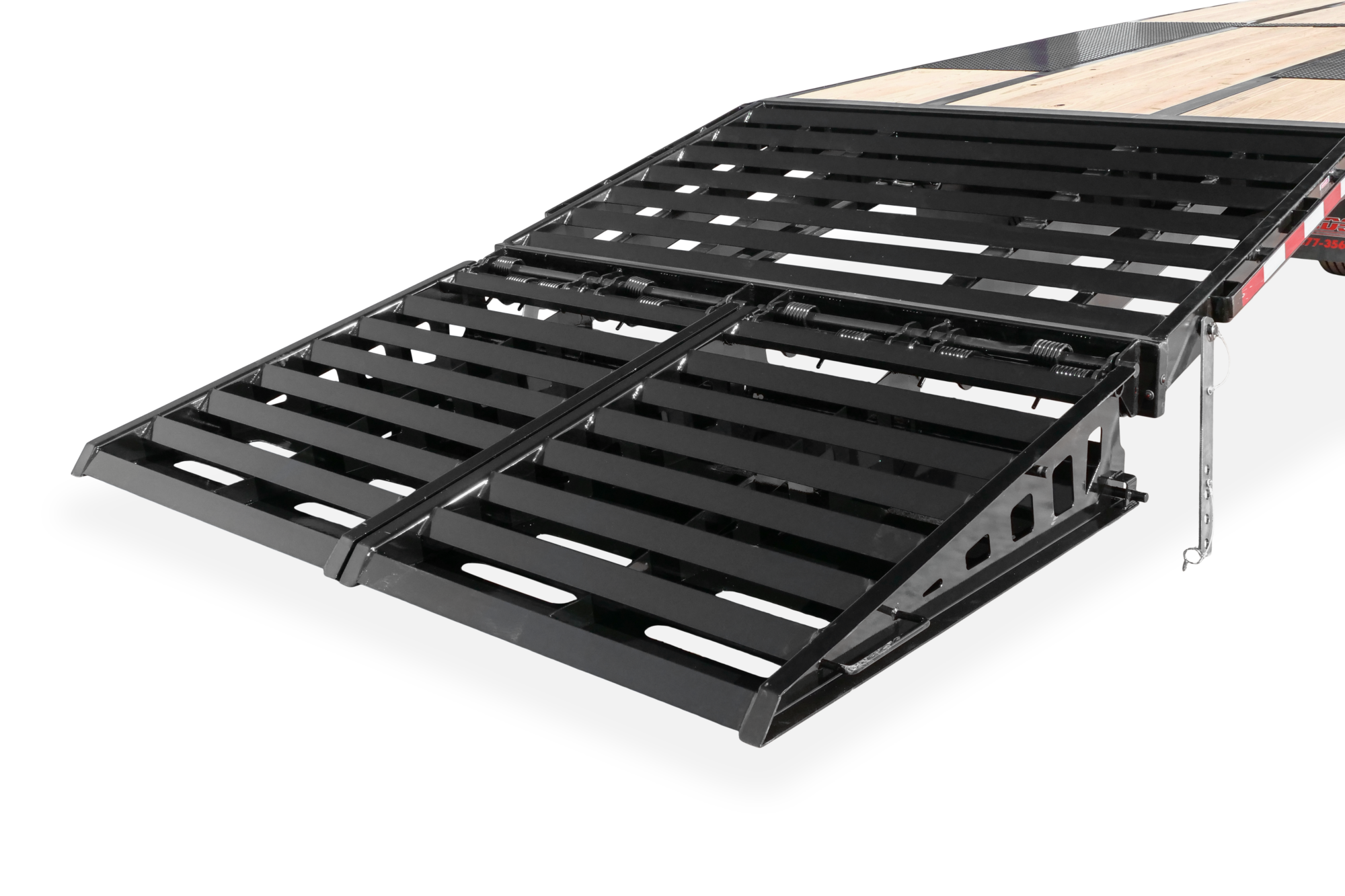

Midsota FBGN Series Deck Over Flatbed Trailer Super Ramps

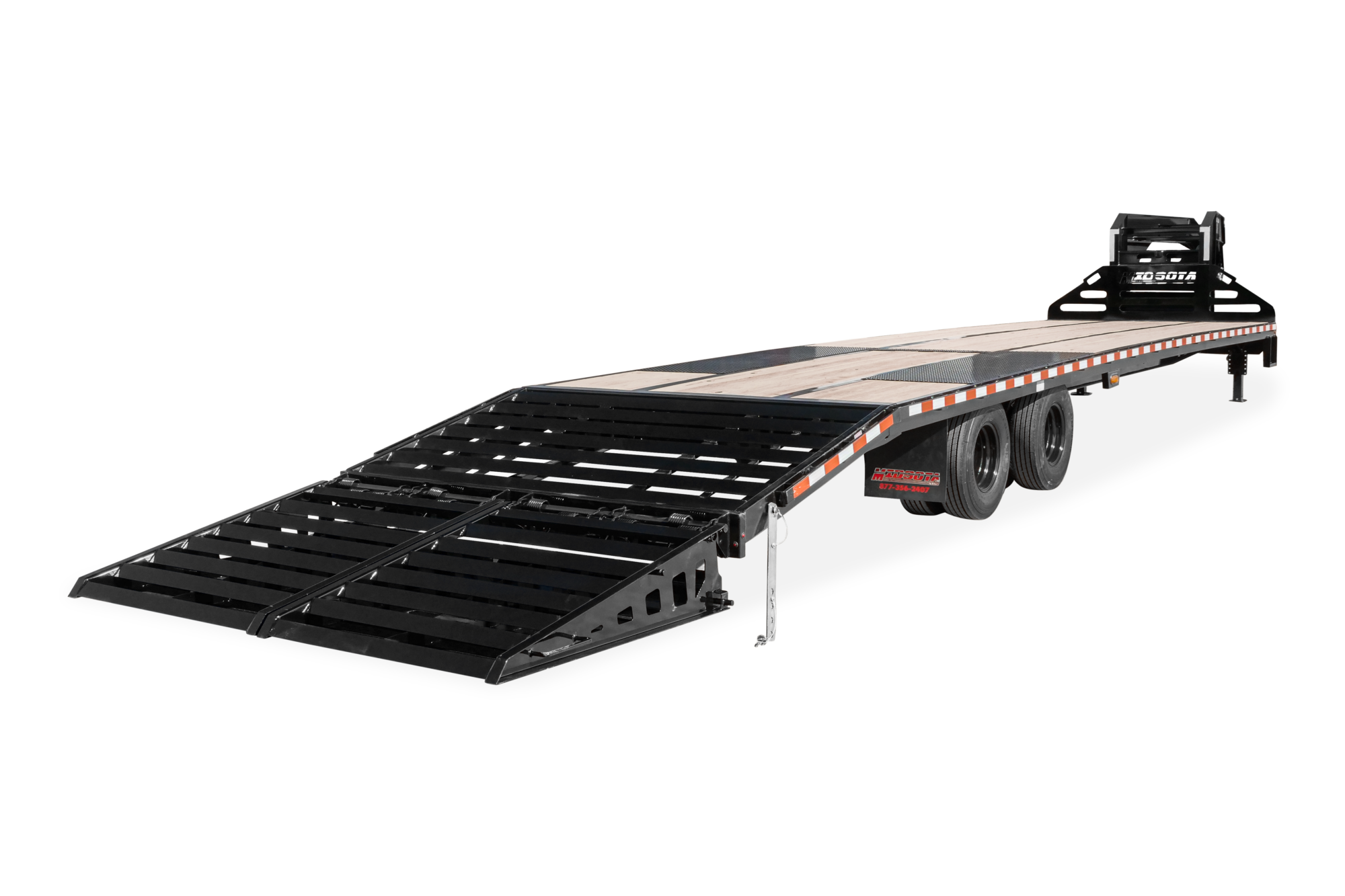

Midsota FBGN Series Deck Over Flatbed Trailer Rear

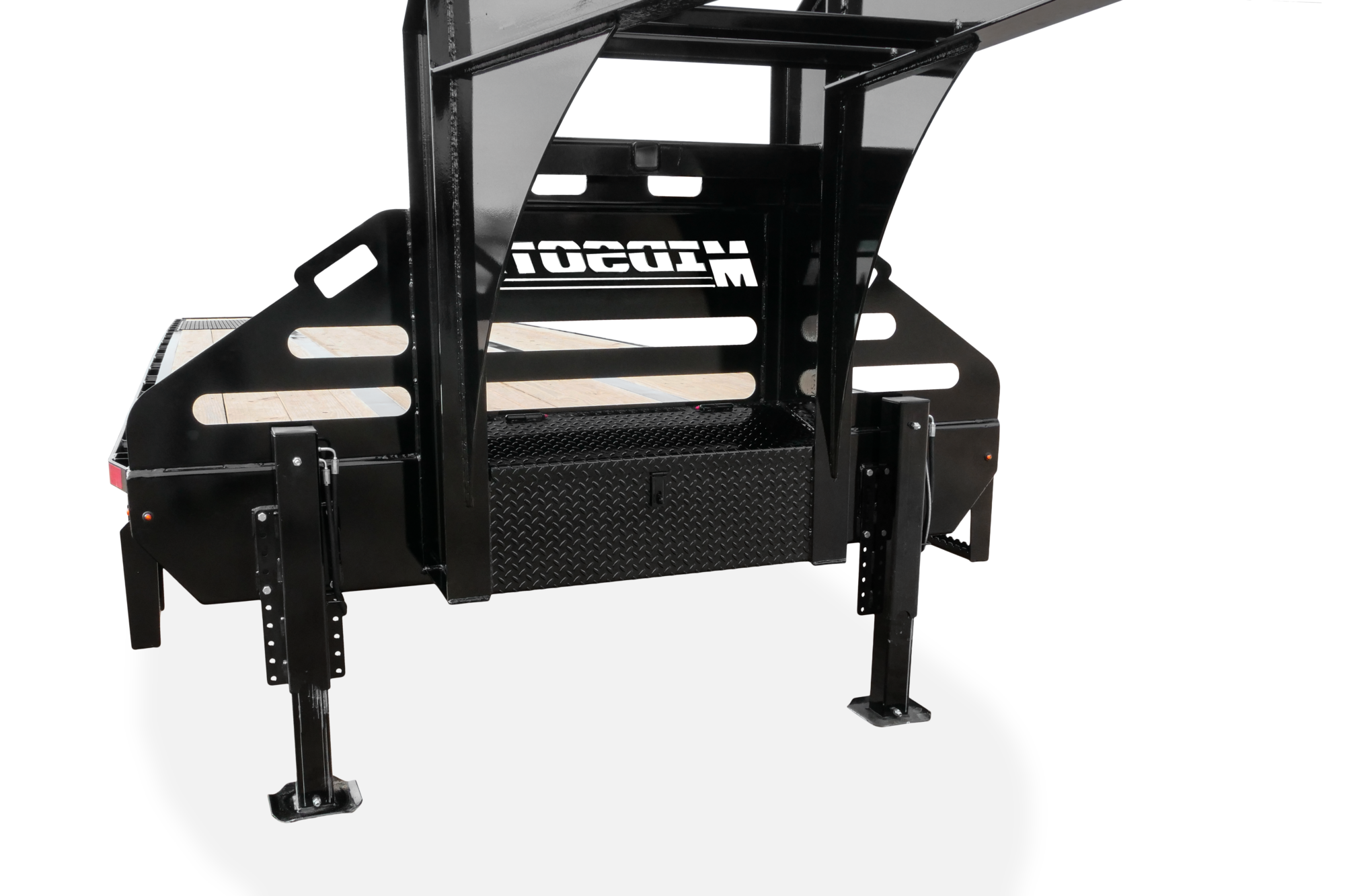

Midsota FBGN Series Deck Over Flatbed Trailer Gooseneck Toolbox

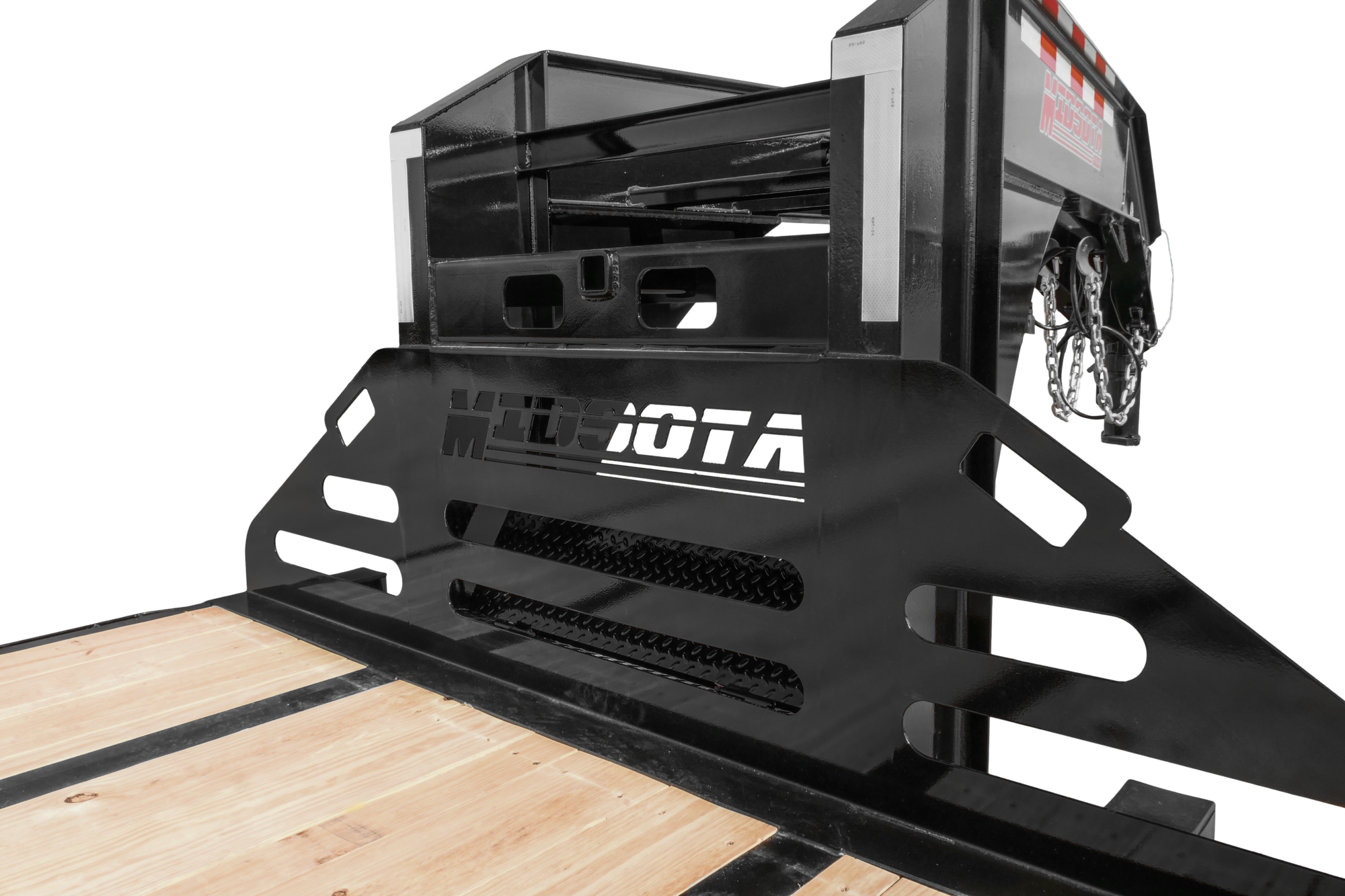

Midsota FBGN Series Deck Over Flatbed Trailer Gooseneck Cutout

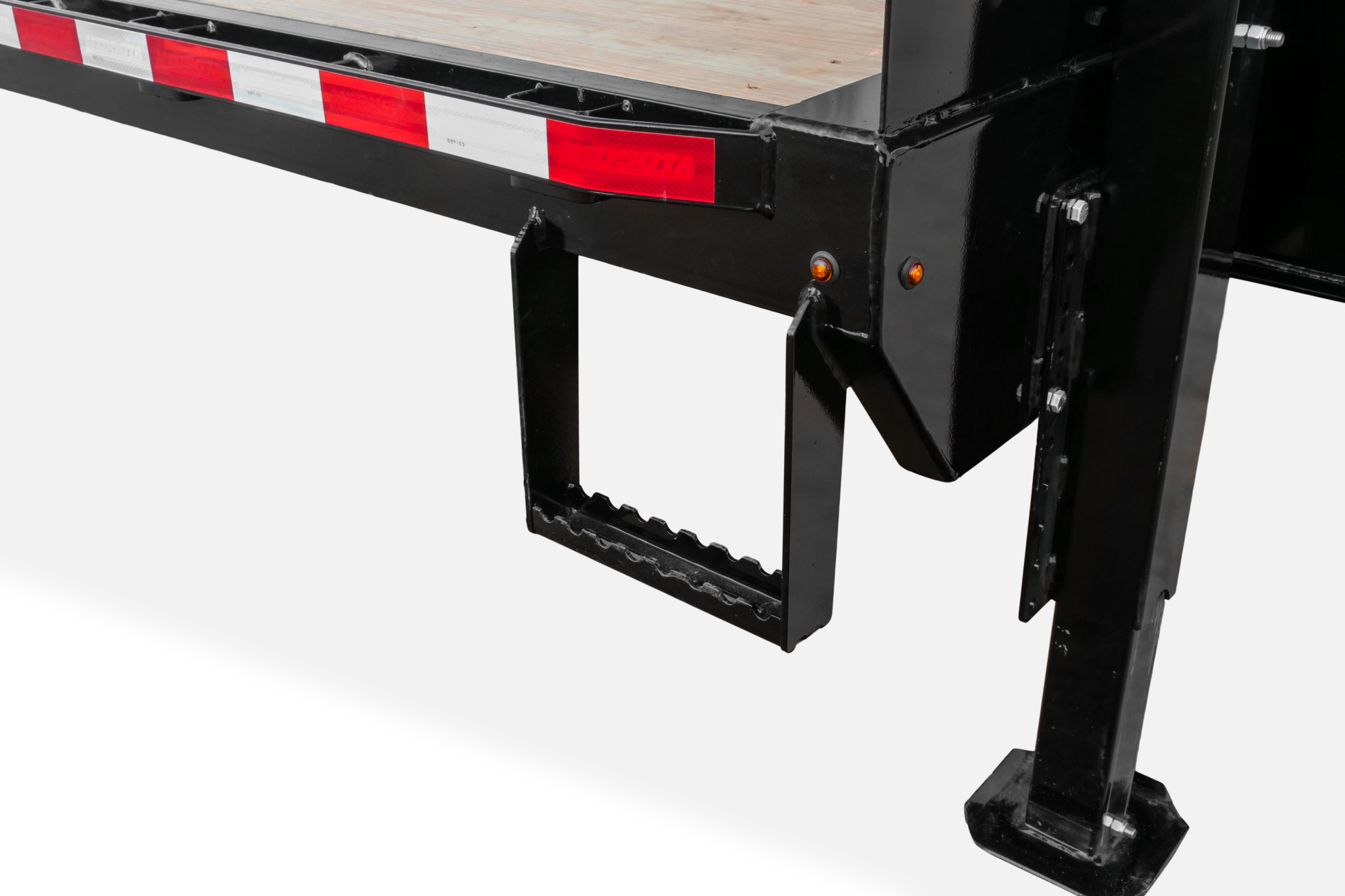

Midsota FBGN Series Deck Over Flatbed Trailer Deck Step

Model Color Options:

White

Standard Colors

Optional Colors

Colors may vary slightly.
Contact your local dealer for color samples.

Why Choose a FBGN Series Gooseneck Deck Over Trailer?

Overview

The Midsota FBGN Series deck over flatbed trailer is designed for those who require a rugged gooseneck trailer built to perform in demanding commercial and agricultural settings. Known for its durable flatbed trailer construction, this trailer effortlessly handles substantial loads, ensuring your heavy equipment reaches its destination safely and efficiently. The integrated 5' Beavertail and fold-over wedge ramps streamline the loading process, allowing operators to move equipment onto the trailer securely and quickly.

Available Models

The FBGN Series deck over trailer offers five versatile models—24′, 28′, 30′, 32′, and 34′—each providing a robust 23,000 Gross Vehicle Weight Rating (GVWR). This wide variety ensures you'll find the perfect gooseneck trailer length tailored specifically for your hauling needs, whether transporting machinery, vehicles, or bulk materials across job sites.

Standard Features

Midsota equips each FBGN Series flatbed trailer with high-quality, performance-oriented standard features. Every model includes self-adjusting electric brakes for reliable stopping power and a square torque tube to provide structural stability. Enhanced durability comes from the 16" crossmember spacing, and practical elements like the integrated toolbox in the gooseneck frame and gooseneck step add to its functionality. With pipe spools, rub rails, stake pockets, concealed wiring to prevent damage, and a comprehensive 5-year frame warranty, the FBGN Series deck over trailer offers lasting value and dependable performance

Options

Customize your gooseneck trailer further with an array of valuable options tailored to suit your exact hauling requirements. Choose between 12K or 16K axle upgrades for increased carrying capacity, dual hydraulic tongue jacks for effortless leveling, and white oak decking for enhanced durability. Additional upgrades include disc brakes for superior stopping performance, underbody toolboxes for added storage, and a convenient gooseneck rack designed to maximize trailer utility, ensuring the FBGN Series meets all your flatbed trailer demands.

Models

102" x 492"

Midsota FBGN Serie
23000 lbs
Model #
NFB32-GN-230
GVWR (lbs)
23000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
7880 lbs

102" x 456"

Midsota FBGN Serie
23000 lbs
Model #
NFB28-GN-230
GVWR (lbs)
23000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
7380 lbs

102" x 468"

Midsota FBGN Serie
23000 lbs
Model #
NFB30-GN-230
GVWR (lbs)
23000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
7630 lbs

102" x 540"

Midsota FBGN Serie
23000 lbs
Model #
NFB36-GN-230
GVWR (lbs)
23000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
8380 lbs

102" x 588"

Midsota FBGN Serie
25900 lbs
Model #
NFB40-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
9280 lbs

102" x 468"

Midsota FBGN Serie
25900 lbs
Model #
NFB30-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
8030 lbs

102" x 456"

Midsota FBGN Serie
25900 lbs
Model #
NFB28-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
7780 lbs

102" x 636"

Midsota FBGN Serie
25900 lbs
Model #
NFB44-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
9400 lbs

102" x 408"

Midsota FBGN Serie
25900 lbs
Model #
NFB34-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
8130 lbs

102" x 492"

Midsota FBGN Serie
25900 lbs
Model #
NFB32-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
8280 lbs

102" x 540"

Midsota FBGN Serie
25900 lbs
Model #
NFB36-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
8780 lbs

102" x 372"

Midsota FBGN Serie
25900 lbs
Model #
NFB26-GN-259
GVWR (lbs)
25900 lbs
GAWR (lbs/axle)
12000 lbs/axle
Curb Weight
7200 lbs

102" x 528"

Midsota FBGN Serie
36800 lbs
Model #
NFB34-GN-368
GVWR (lbs)
36800 lbs
GAWR (lbs/axle)
16000 lbs/axle
Curb Weight
7975 lbs

102" x 540"

Midsota FBGN Serie
36800 lbs
Model #
NFB36-GN-368
GVWR (lbs)
36800 lbs
GAWR (lbs/axle)
16000 lbs/axle
Curb Weight
8930 lbs

102" x 588"

Midsota FBGN Serie
36800 lbs
Model #
NFB40-GN-368
GVWR (lbs)
36800 lbs
GAWR (lbs/axle)
16000 lbs/axle
Curb Weight
9580 lbs

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
