ST Series Equipment Trailer

Bed Width: 82′-102′
Bed Length: 18′-43′
GVWR: 15,400-18,400 lbs
GAWR: 7,000-8,000 lbs/axle
Midsota ST Series Low Profile Flatbed Trailer Front Hero

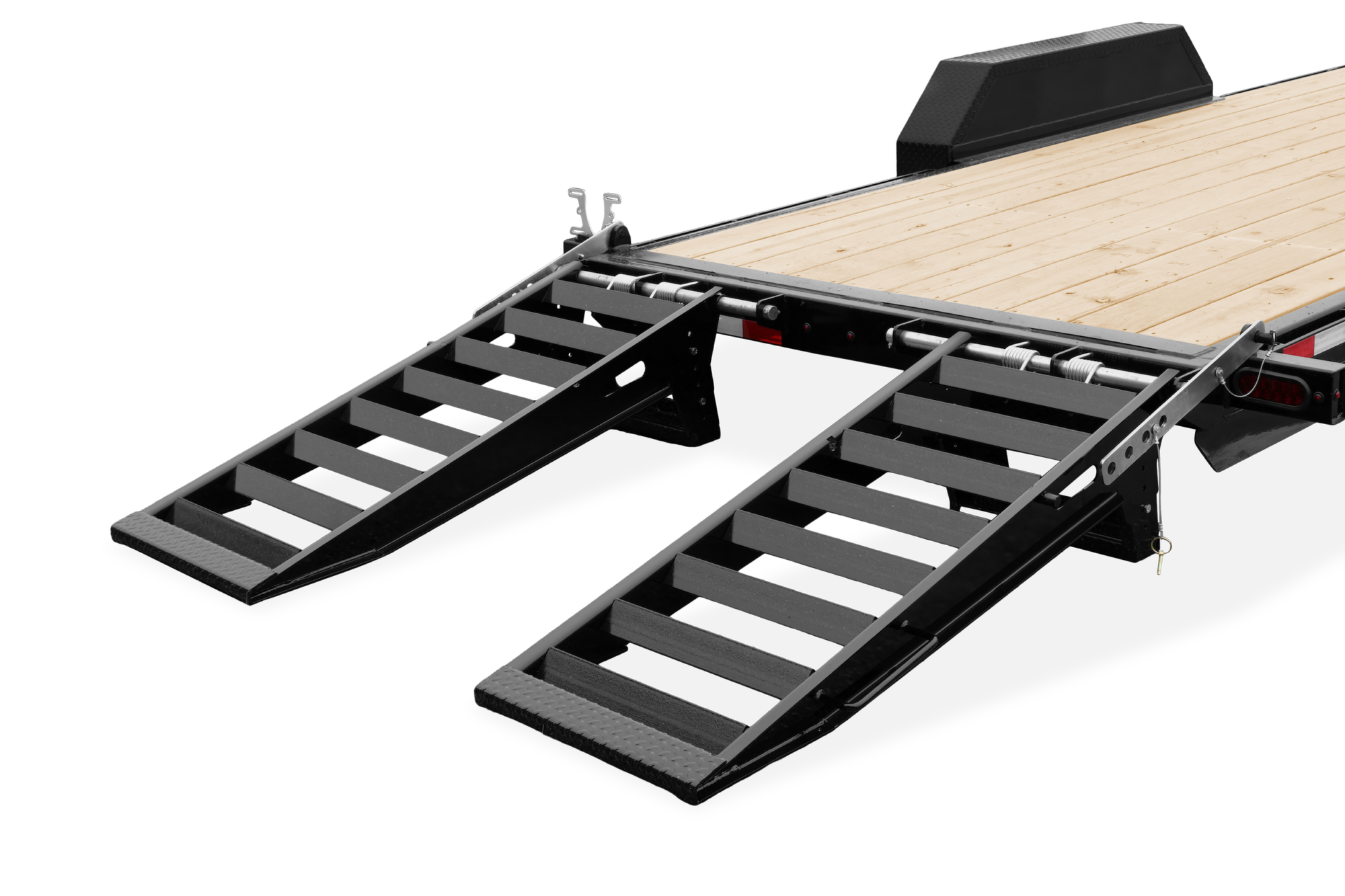

18'' x 5' Spring Assist Ramps

Easy to lift, yet capable of taking on heavy duty implements.

5'' Frame Skirting

Adds structural integrity and protects the trailer frame.

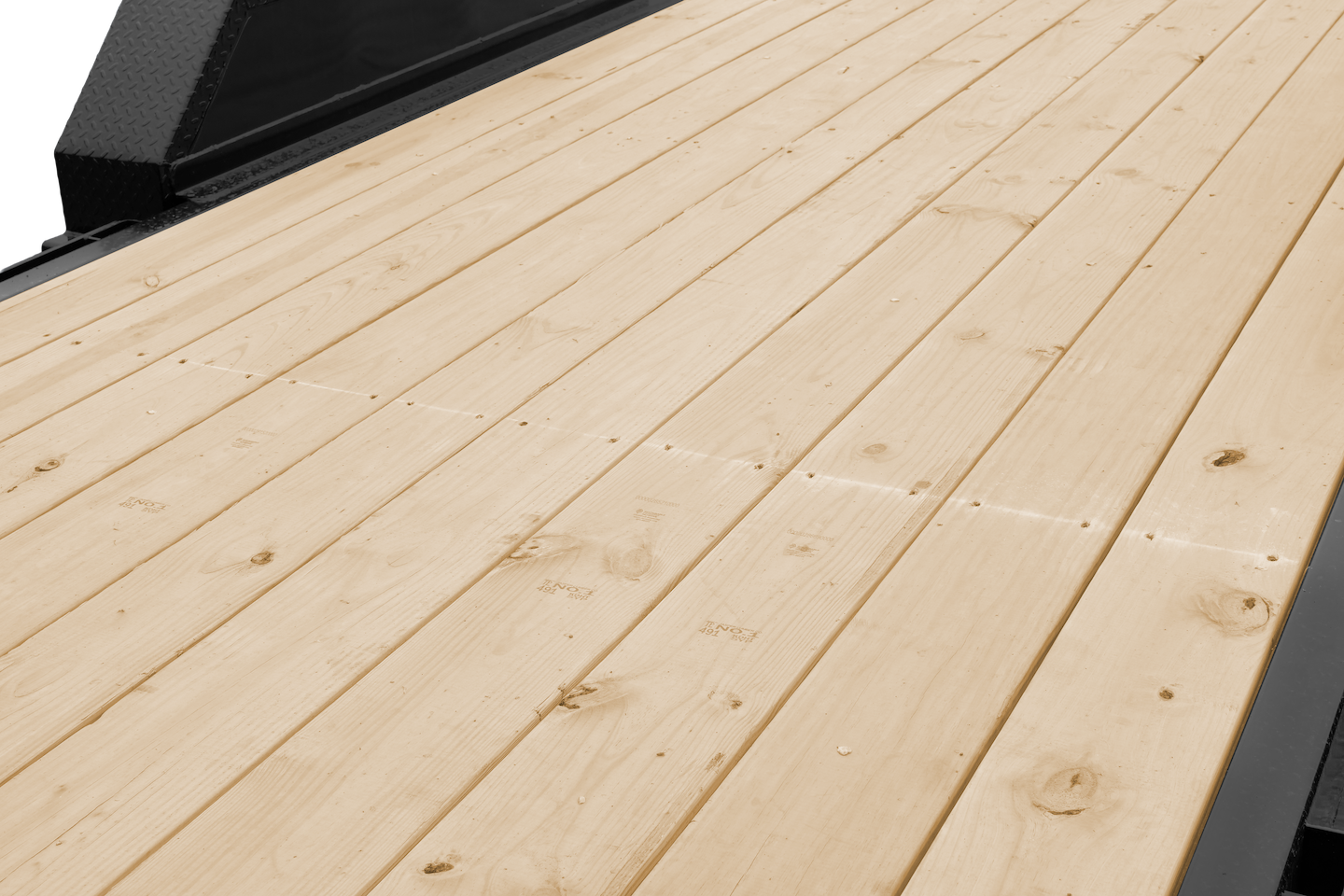

Full Length Treated Wood Deck

Ensures durability and provides a stable hauling surface.

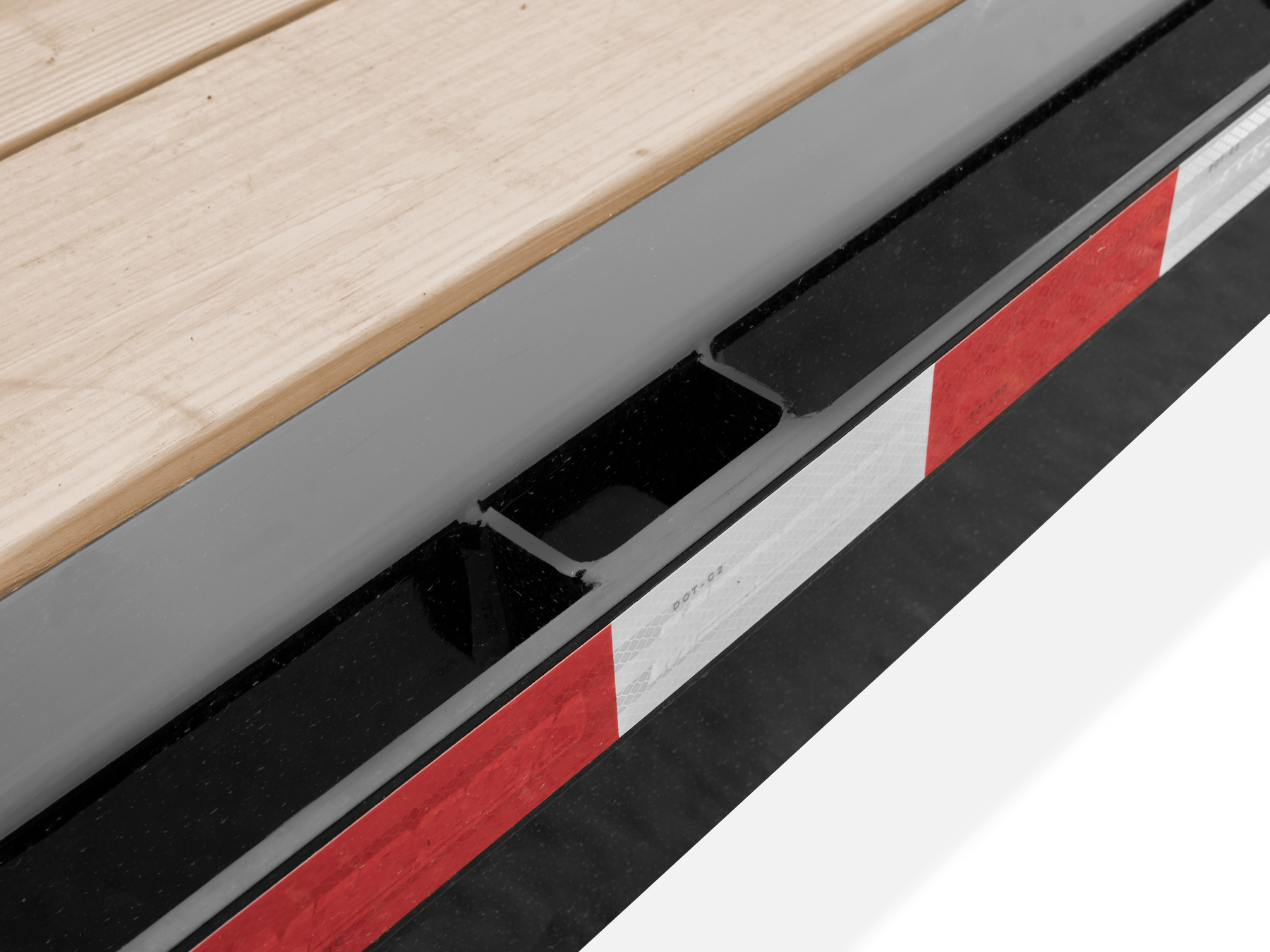

Rub Rail & Stake Pockets

Enhances load security and offers flexible tie-down options.

ST Series Equipment Trailer

The ST Series Equipment Trailer from Midsota combines rugged durability, versatility, and user-friendly design into a dependable flatbed trailer ideal for hauling heavy machinery and equipment. Engineered with strength and convenience in mind, this trailer features easy loading, robust construction, and long-lasting reliability, making it perfect for demanding commercial or personal use.

Key Benefits

18'' x 5' Spring Assist Ramps

Easy to lift, yet capable of taking on heavy duty implements.

5'' Frame Skirting

Adds structural integrity and protects the trailer frame.

Full Length Treated Wood Deck

Ensures durability and provides a stable hauling surface.

Rub Rail & Stake Pockets

Enhances load security and offers flexible tie-down options.

Explore This Trailer

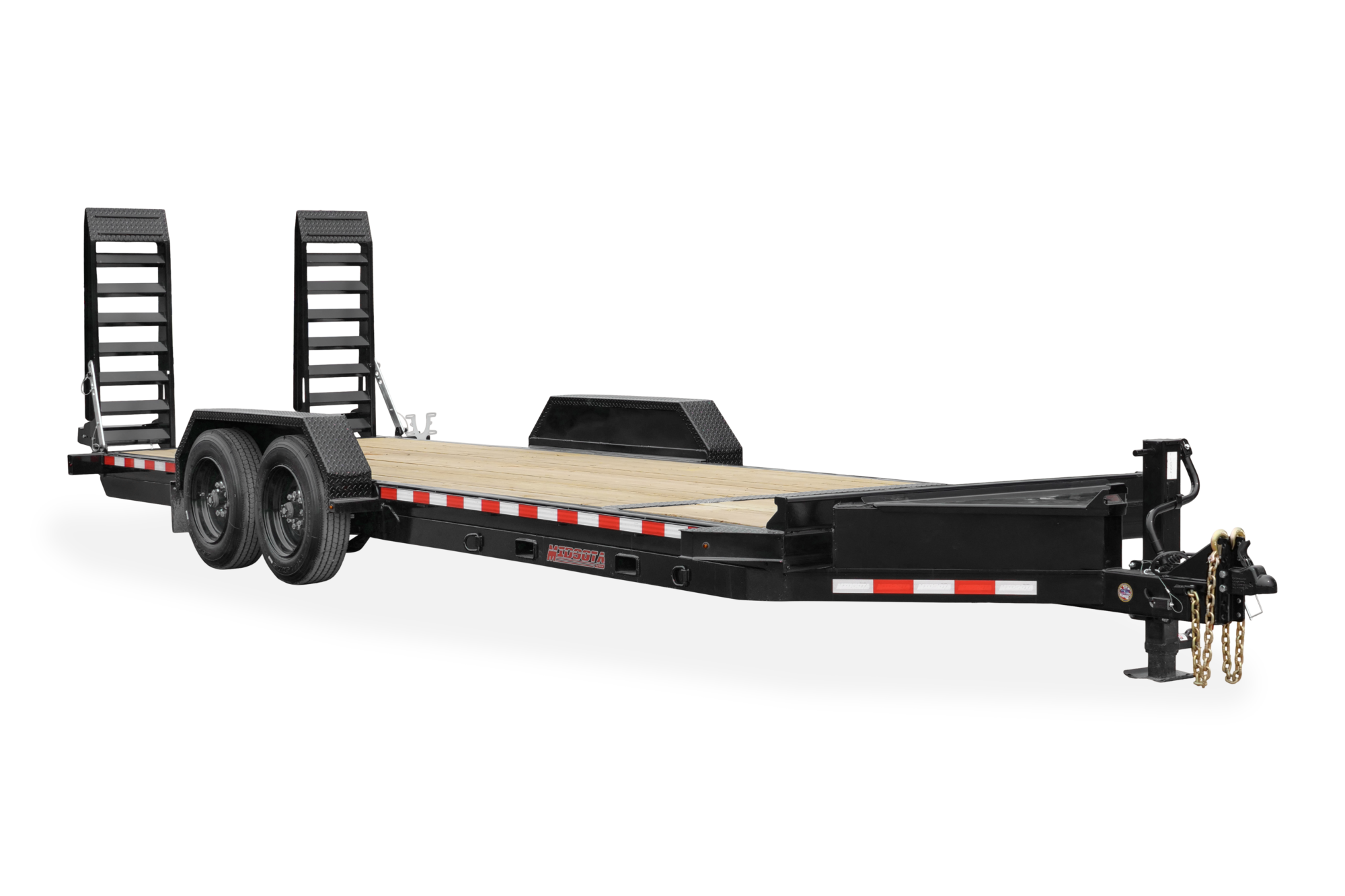

Midsota ST Series Low Profile Flatbed Trailer Front Hero

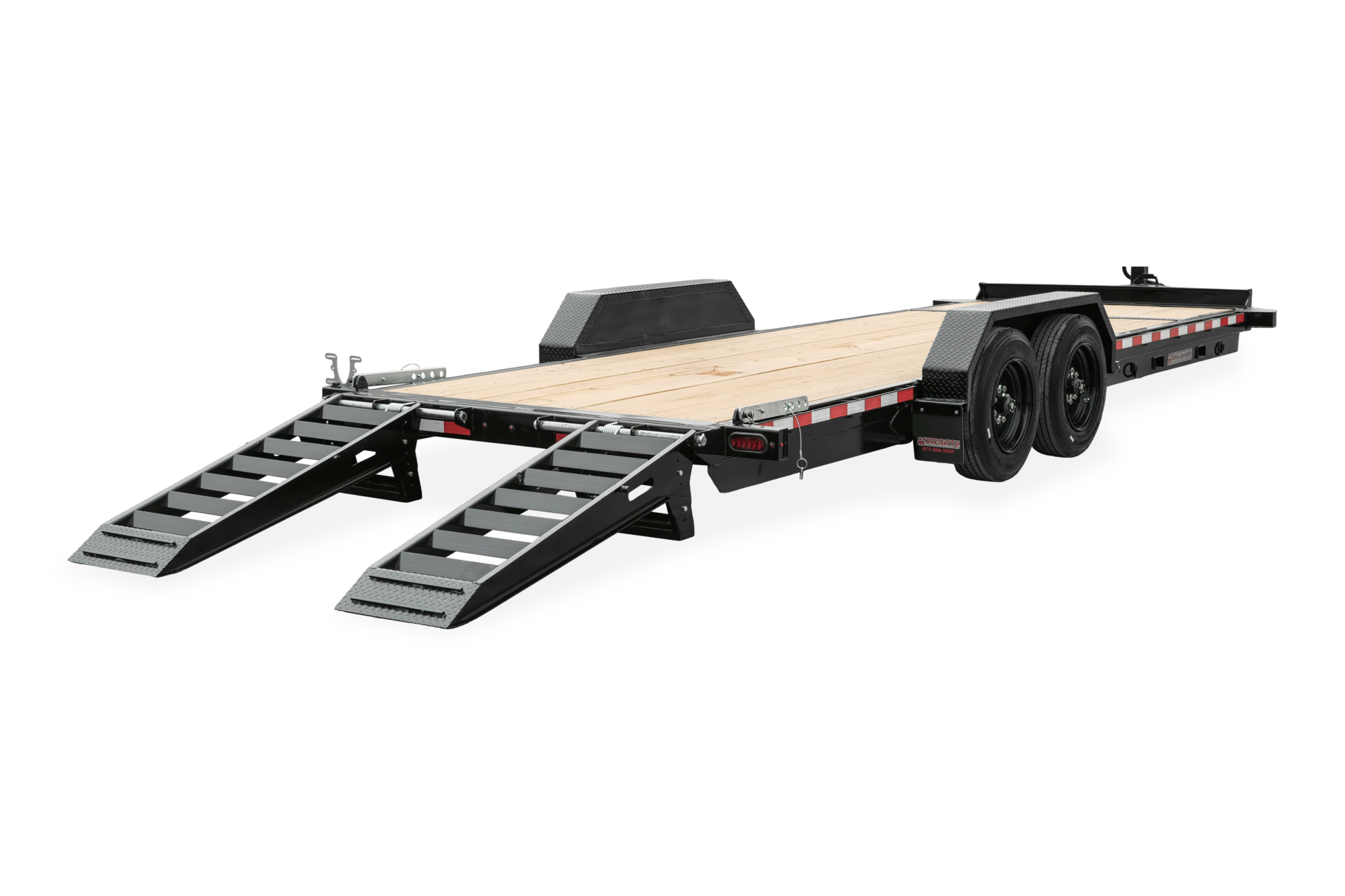

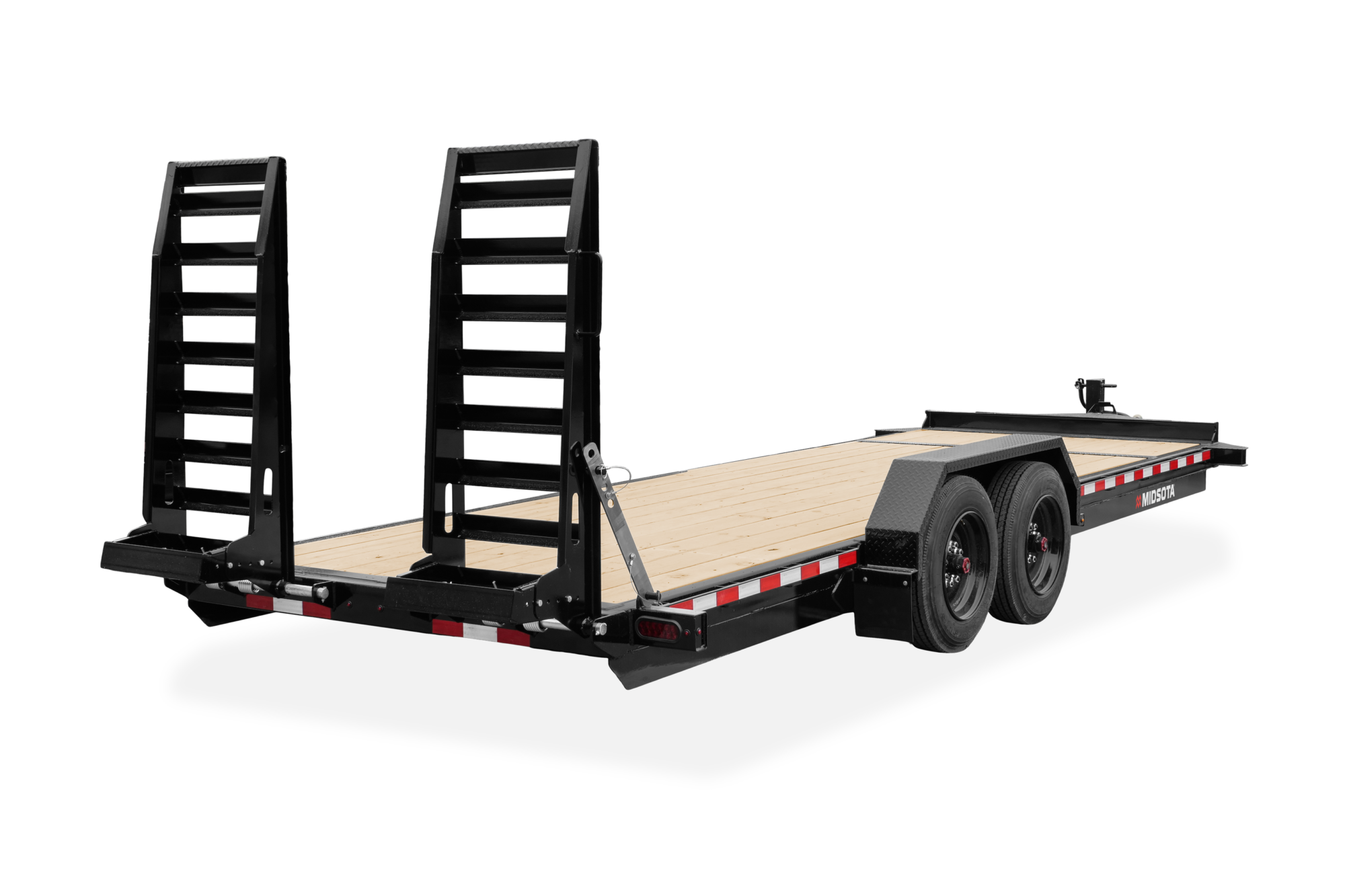

Midsota ST Series Low Profile Flatbed Trailer Rear Ramps Down

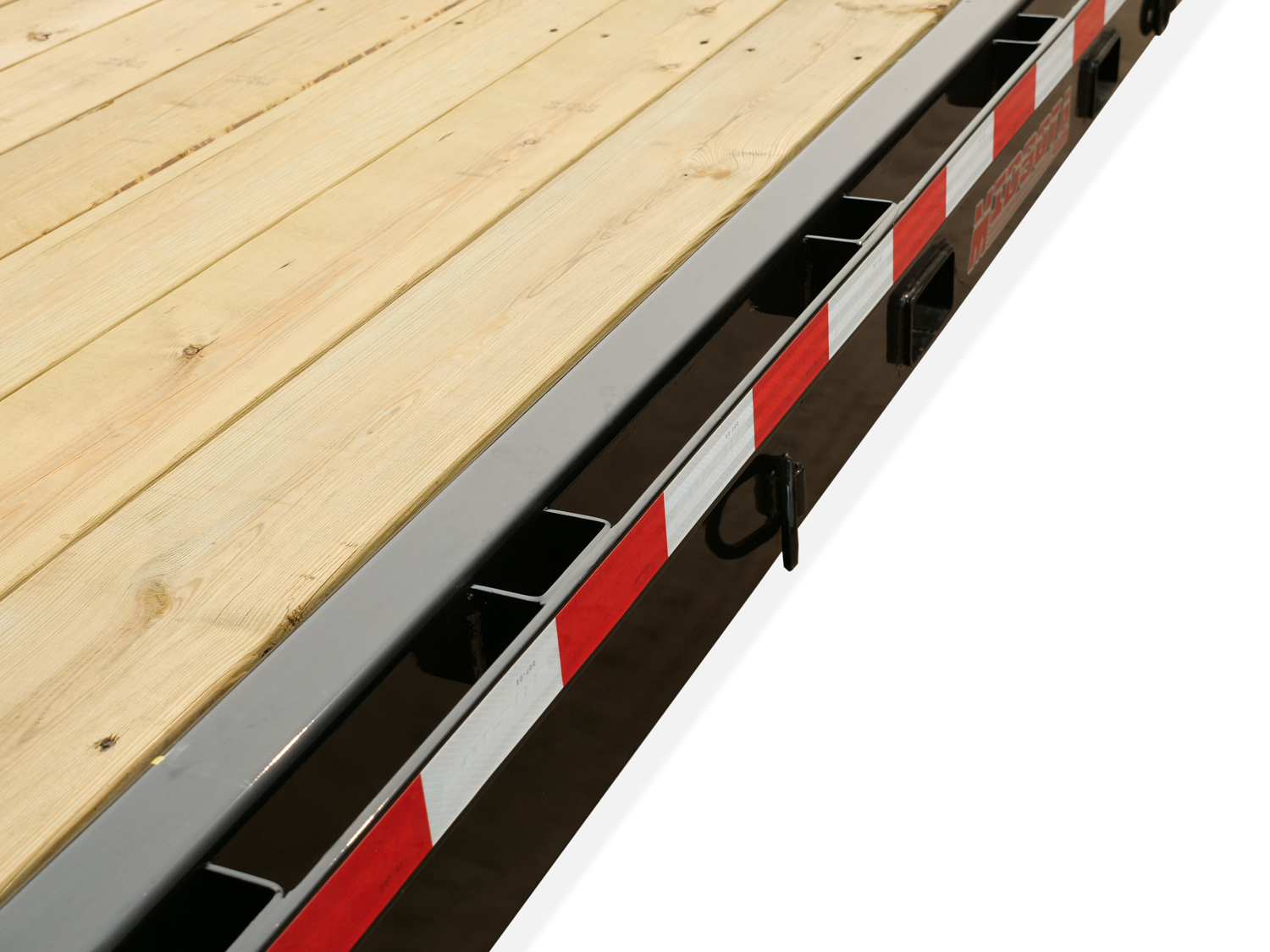

Midsota ST Series Low Profile Flatbed Trailer Rub Rails

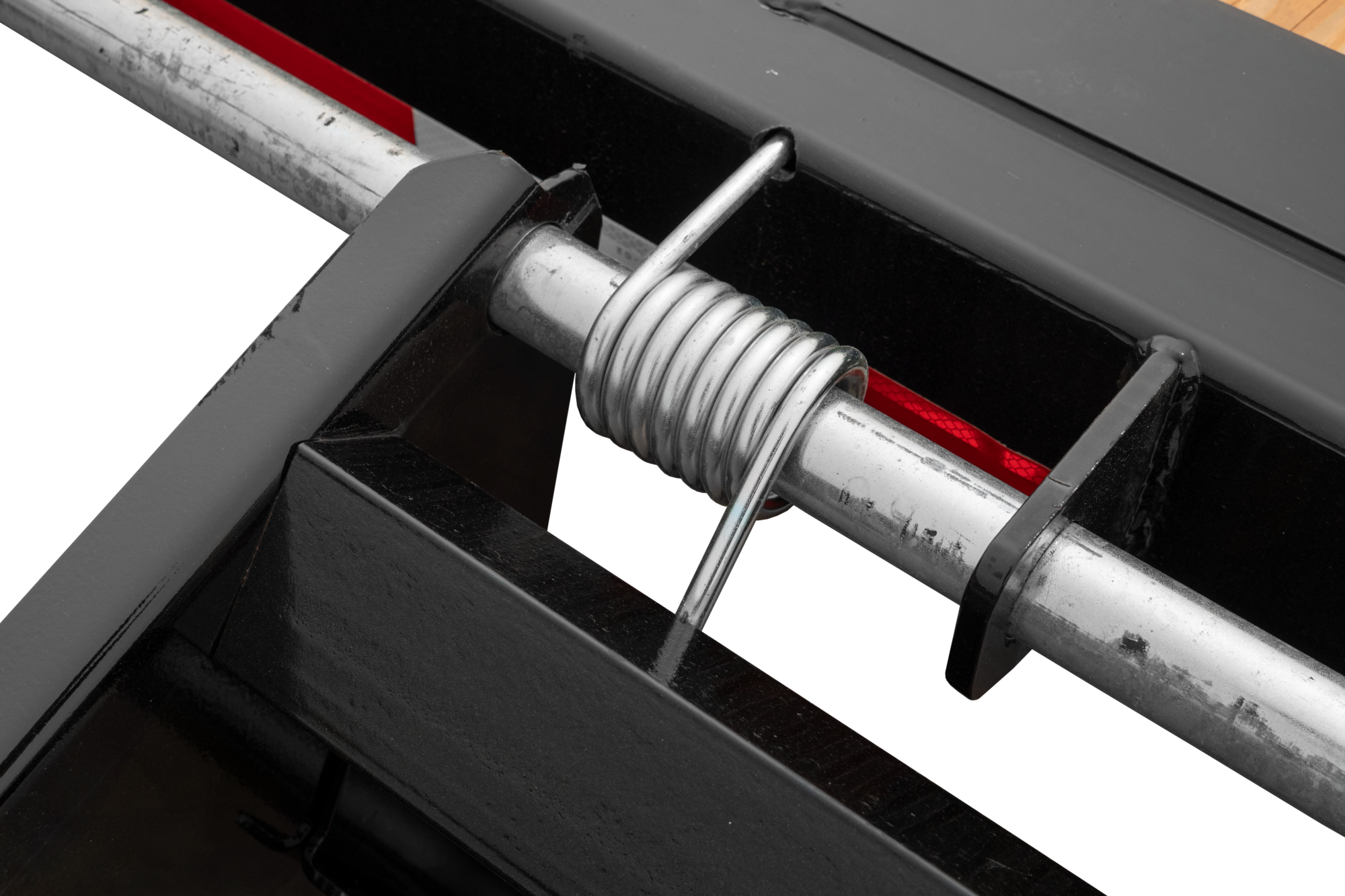

Midsota ST Series Low Profile Flatbed Trailer Spring

Model Color Options:

White

Standard Colors

Optional Colors

Colors may vary slightly.
Contact your local dealer for color samples.

Why Choose a ST Series Equipment Trailer?

Overview

The ST Series Equipment Trailer from Midsota is engineered to handle your toughest hauling demands. As a flatbed trailer known for robust construction, it effortlessly accommodates heavy machinery, cars, and equipment. Its strength is matched by user-friendly features, providing optimal performance whether used commercially or personally. Crafted with precision and durability, this equipment trailer ensures safe transport over any distance.

Available Models

Offering versatility to suit diverse needs, the ST Series Equipment Trailer is available in lengths of 16, 18, 20, 22, 24, and 26 feet. Each model boasts a consistent GVWR rating of 15,400 pounds, ensuring superior strength regardless of size. Whether moving compact machinery or larger vehicles, each flatbed trailer size delivers reliable performance without compromising on stability or safety.

Standard Features

Built standard with self-adjusting electric brakes and 16-inch, E-range 10-ply tires, this trailer provides unmatched safety and control. Grade 50 three-inch channel crossmembers at 16-inch intervals enhance structural integrity, while meticulous engineering ensures no exposed wiring, protecting electrical components. A cold-weather rated 7-way plug (functional down to -85°) ensures reliable connectivity, and industrial-grade polymer finish offers superior corrosion resistance. Additional quality details include LED lighting for increased visibility, a 12K bolt-on spring return jack for easy hitching, and an adjustable 2-5/16-inch coupler. Confidence is further ensured by a robust 5-year frame warranty.

Options

Customize your ST Series flatbed trailer to match exact hauling requirements with valuable upgrades. Optional features include an 8K axle upgrade or disc brakes for enhanced stopping power. For additional support, 12-inch crossmembers can increase strength, particularly useful under heavy loads. A gooseneck option provides alternative towing configurations for greater maneuverability. Consider adding a steel toolbox for secure storage or a 2-foot beavertail extension for improved loading angle, making this equipment trailer fully adaptable for specialized hauling scenarios.

Models

82" x 348"

Midsota ST Series
15400 lbs
Model #
NST22-BP-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3375 lbs

82" x 300"

Midsota ST Series
15400 lbs
Model #
NST18-BP-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3030 lbs

82" x 324"

Midsota ST Series
15400 lbs
Model #
NST20-BP-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3180 lbs

82" x 396"

Midsota ST Series
15400 lbs
Model #
NST26-BP-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3870 lbs

82" x 372"

Midsota ST Series
15400 lbs
Model #
NST24-BP-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
3700 lbs

102" x 396"

Midsota STWBHB Series
17600 lbs
Model #
NSTWBHB26-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4995 lbs

102" x 444"

Midsota STWBHB Series
17600 lbs
Model #
NSTWBHB30-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5750 lbs

102" x 420"

Midsota STWBHB Series
17600 lbs
Model #
NSTWBHB28-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5185 lbs

102" x 468"

Midsota STWBHB Series
17600 lbs
Model #
NSTWBHB32-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5585 lbs

102" x 468"

Midsota STWBHB Series
18400 lbs
Model #
NSTWBHB28-GN-184
GVWR (lbs)
18400 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
6495 lbs

102" x 516"

Midsota STWBHB Series
18400 lbs
Model #
NSTWBHB32-GN-184
GVWR (lbs)
18400 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
6790 lbs

102" x 444"

Midsota STWBHB Series
18400 lbs
Model #
NSTWBHB26-GN-184
GVWR (lbs)
18400 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
6260 lbs

102" x 492"

Midsota STWBHB Series
18400 lbs
Model #
NSTWBHB30-GN-184
GVWR (lbs)
18400 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
6717 lbs

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
