TBO Series Tilt Trailer

Bed Width: 102′
Bed Length: 22′-37′
GVWR: 15,400-18,400 lbs
GAWR: 7,000-8,000 lbs/axle
Midsota TBO Series Tilt Utility Trailer Front Down

18' Tilting Bed

Provides effortless loading and unloading without the need for cumbersome ramps.

36" Deck Over Bed Height

Offers better ground clearance and a full width deck for easier and more versatile hauling.

Hydraulically Locking Tilt

Ensures secure and controlled tilting for safe and efficient equipment loading.

12K Spring Return Jack

Allows for quick and convenient hitching and unhitching, saving time on the job.

TBO Series Tilt Trailer

The Midsota TBO Series tilt trailer is a heavy-duty deck over trailer built for hauling equipment with ease and efficiency. Featuring a hydraulically locking tilt deck, an 18-foot tilting bed, and a 36-inch deck height, this tilt deck trailer provides a smooth loading experience without the hassle of ramps. With multiple available models and durable construction, the TBO Series is designed to meet the toughest job site demands.

Key Benefits

18' Tilting Bed

Provides effortless loading and unloading without the need for cumbersome ramps.

36" Deck Over Bed Height

Offers better ground clearance and a full width deck for easier and more versatile hauling.

Hydraulically Locking Tilt

Ensures secure and controlled tilting for safe and efficient equipment loading.

12K Spring Return Jack

Allows for quick and convenient hitching and unhitching, saving time on the job.

Explore This Trailer

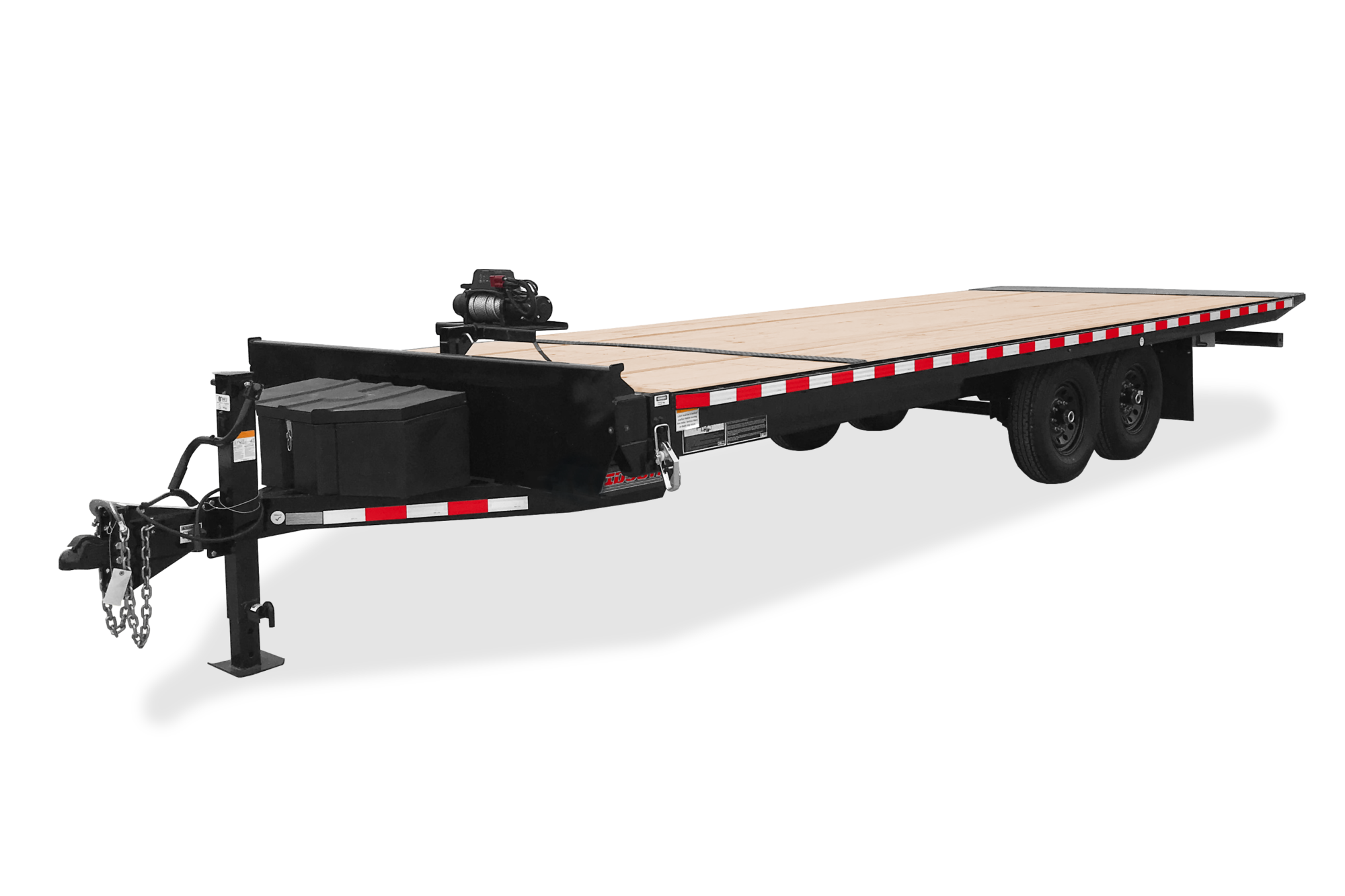

Midsota TBO Series Tilt Utility Trailer Front Down

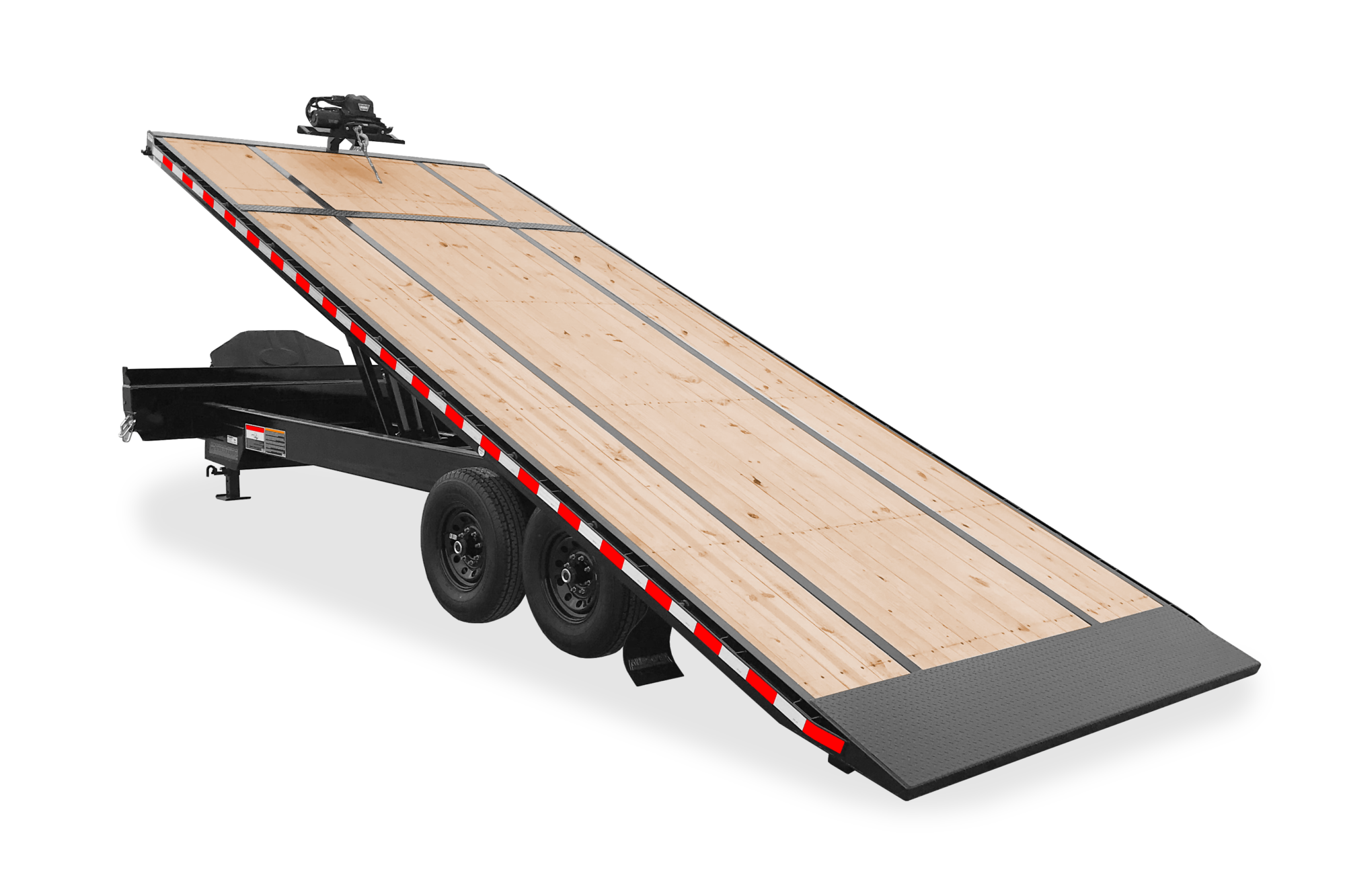

Midsota TBO Series Tilt Utility Trailer Rear Up

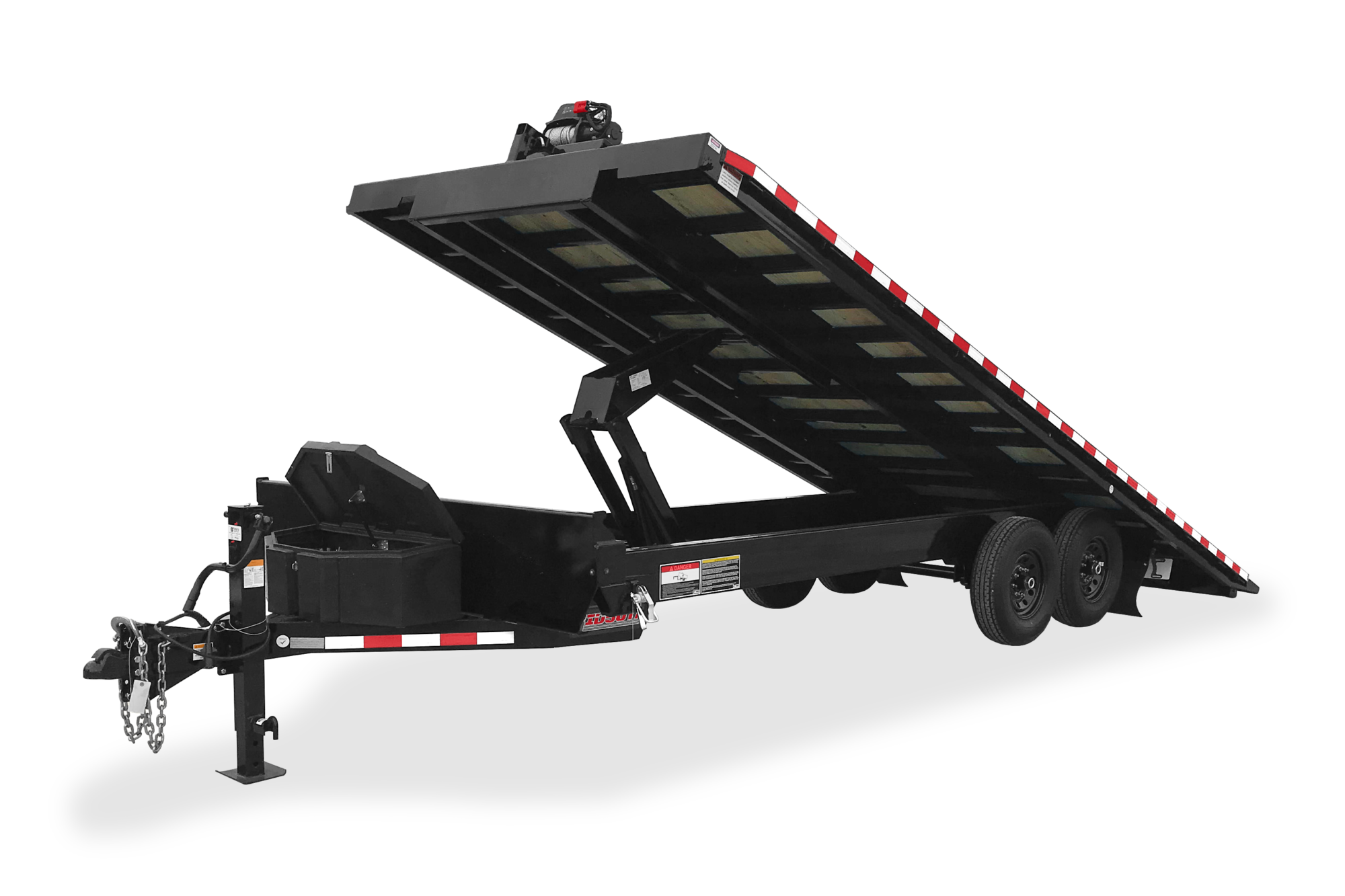

Midsota TBO Series Tilt Utility Trailer Front Up

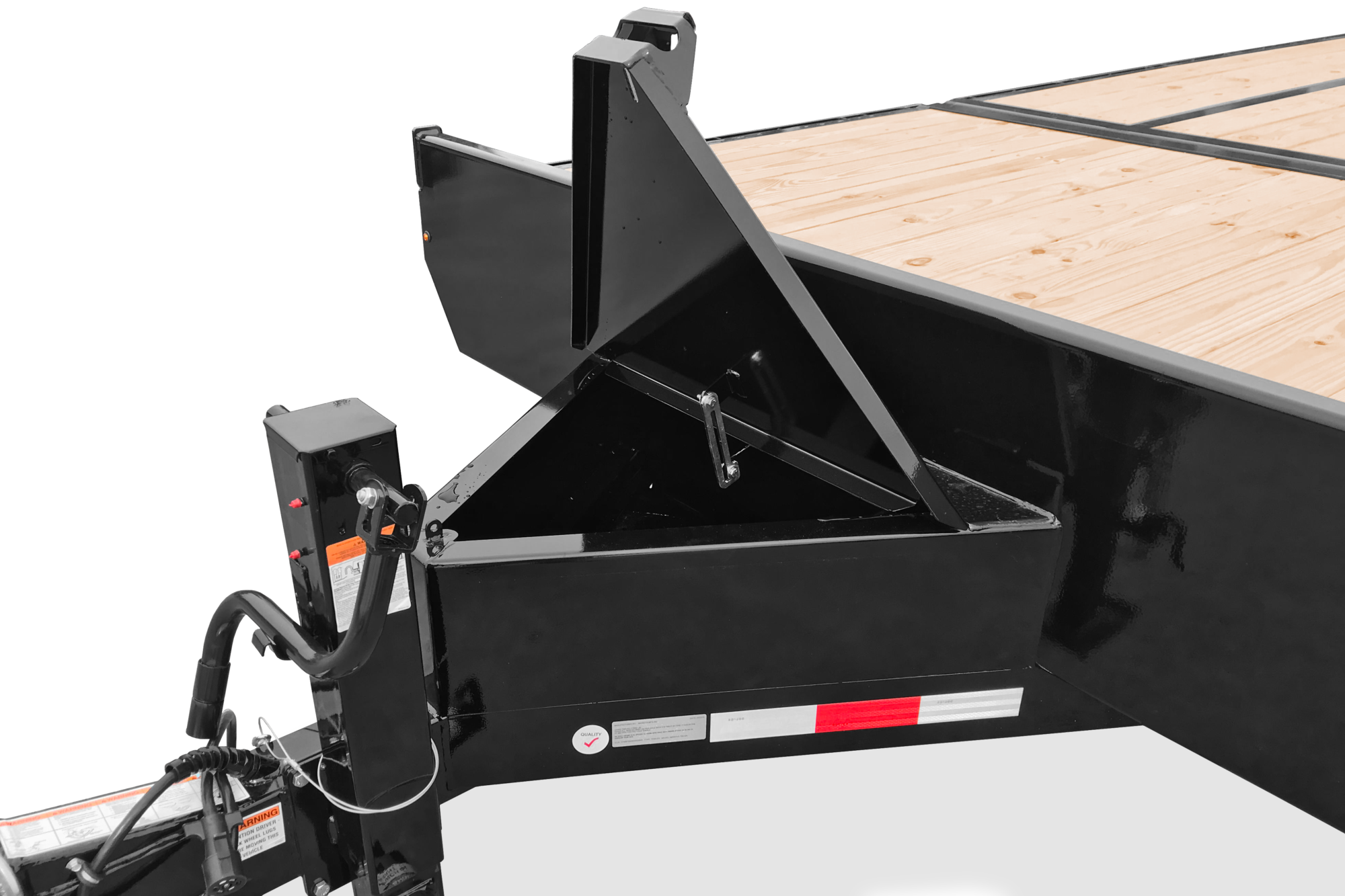

Midsota TBO Series Tilt Utility Trailer Toolbox

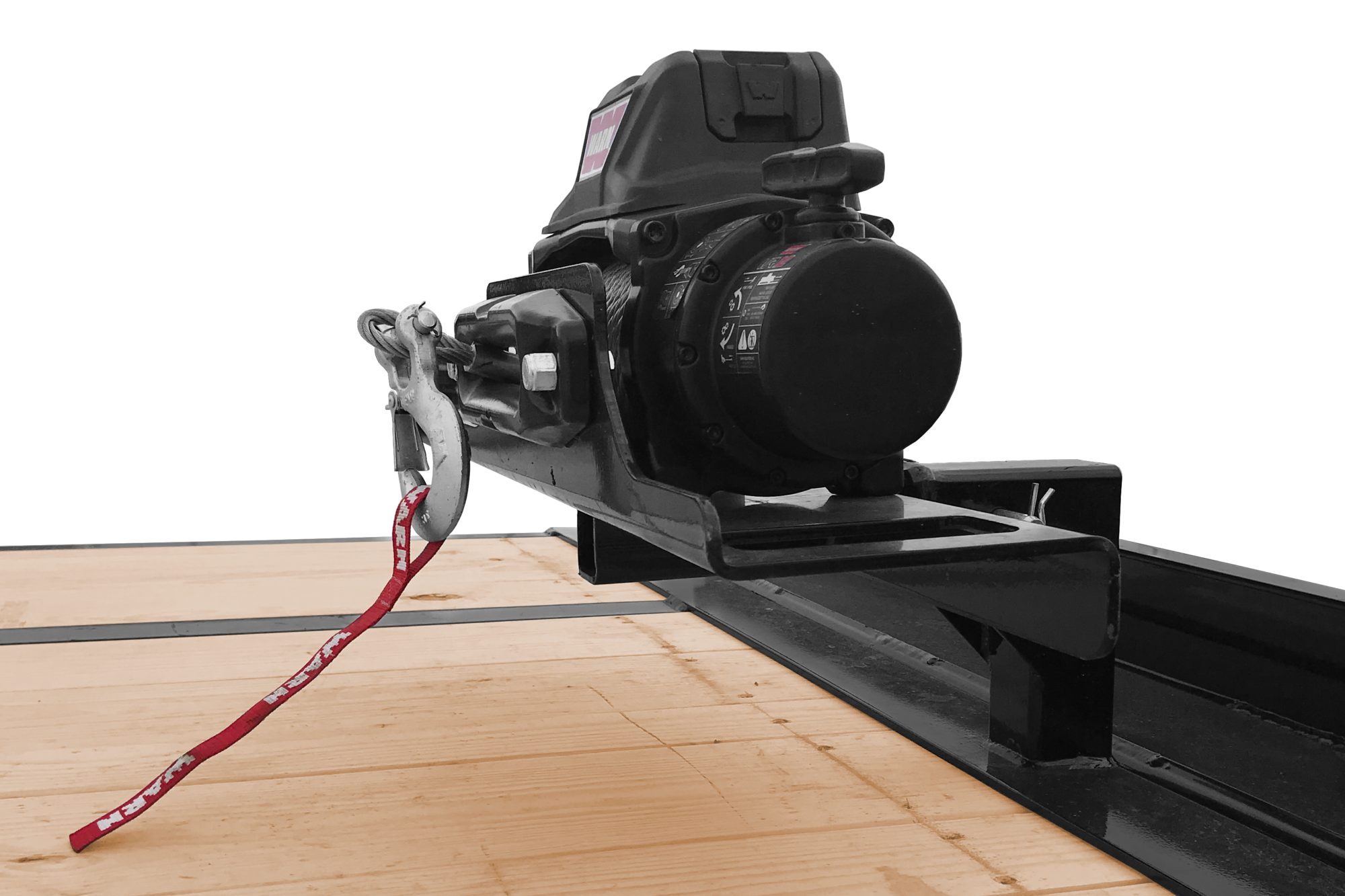

Midsota TBO Series Tilt Utility Trailer Tow Cable

Model Color Options:

White

Standard Colors

Optional Colors

Colors may vary slightly.
Contact your local dealer for color samples.

Why Choose a TBO Series Tilt Trailer?

Overview

The Midsota TBO Series tilt trailer is engineered for professionals who need a reliable, high-performance deck over trailer. Designed with a rugged frame and a smooth tilting deck, this trailer eliminates the need for cumbersome ramps, making it ideal for hauling equipment, vehicles, and materials. With an industrial-grade polymer finish and premium components, the TBO Series tilt deck trailer is built for long-term durability in demanding environments.

Available Models

The TBO Series comes in multiple configurations to fit various hauling needs. Available in 22', 24', 26', and 28' lengths, each model features a stationary front deck ranging from 4 to 10 feet, allowing for greater versatility when loading multiple pieces of equipment. The trailer is available with GVWR ratings of 15,400 lbs. and 17,600 lbs., ensuring the strength and capacity required for heavy-duty applications.

Standard Features

Designed for strength and longevity, the TBO Series tilt trailer is equipped with high-quality standard features to enhance performance. The trailer includes self-adjusting electric brakes and 16" E-range 10-ply tires for improved safety and stability. A robust frame with Grade 50 3" channel crossmembers and 16" crossmember spacing ensures superior structural integrity. The treated wood decking, rub rail, and stake pockets provide secure load management, while the cold-weather 7-way plug and LED lights ensure reliable operation in any condition. The 2-5/16" adjustable coupler and 12K spring return jack add convenience, and Midsota backs the frame with a 5-year warranty for peace of mind.

Options

The TBO Series tilt deck trailer offers a range of optional upgrades to meet specific hauling requirements. The 8K axle upgrade increases load capacity for heavier equipment. A gooseneck option enhances towing stability, while an A-frame steel toolbox provides additional storage. Power tilt functionality offers effortless deck operation, and the full tilt upgrade eliminates the stationary deck for a completely tilting bed. For added durability, white oak decking is available as an alternative to the treated wood standard.

Models

102" x 444"

Midsota TBO Full Tilt Series
15400 lbs
Model #
NTBOFT24-BP-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4950 lbs

102" x 348"

Midsota TBO Series
15400 lbs
Model #
NTBO24-BP-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5640 lbs

102" x 324"

Midsota TBO Series
15400 lbs
Model #
NTBO22-BP-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
4685 lbs

102" x 372"

Midsota TBO Series
15400 lbs
Model #
NTBO26-BP-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
5970 lbs

102" x 396"

Midsota TBO Series
15400 lbs
Model #
NTBO28-BP-154
GVWR (lbs)
15400 lbs
GAWR (lbs/axle)
7000 lbs/axle
Curb Weight
6300 lbs

102" x 444"

Midsota TBO Full Tilt Series
17600 lbs
Model #
NTBOFT22-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4950 lbs

102" x 444"

Midsota TBO Full Tilt Series
17600 lbs
Model #
NTBOFT24-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4950 lbs

102" x 324"

Midsota TBO Series
17600 lbs
Model #
NTBO22-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4950 lbs

102" x 348"

Midsota TBO Series
17600 lbs
Model #
NTBO24-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
6040 lbs

102" x 372"

Midsota TBO Series
17600 lbs
Model #
NTBO26-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
6370 lbs

102" x 396"

Midsota TBO Series
17600 lbs
Model #
NTBO28-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
7030 lbs

102" x 444"

Midsota TBO Full Tilt Series
18400 lbs
Model #
NTBOFT26-GN-184
GVWR (lbs)
18400 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
6400 lbs

102" x 396"

Midsota TBO Series
18400 lbs
Model #
NTBO24-GN-184
GVWR (lbs)
18400 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
6640 lbs

102" x 420"

Midsota TBO Series
18400 lbs
Model #
NTBO26-GN-184
GVWR (lbs)
18400 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
6640 lbs

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
