TBWB Series Tilt Trailer

Bed Width: 102′
Bed Length: 22′-41′
GVWR: 17,600-23,000 lbs
GAWR: 8,000-10,000 lbs/axle
Midsota TBWB Series Tilt Utility Trailer Front Up

Drive Over Fenders

Allows for easy loading of wider equipment without restrictions.

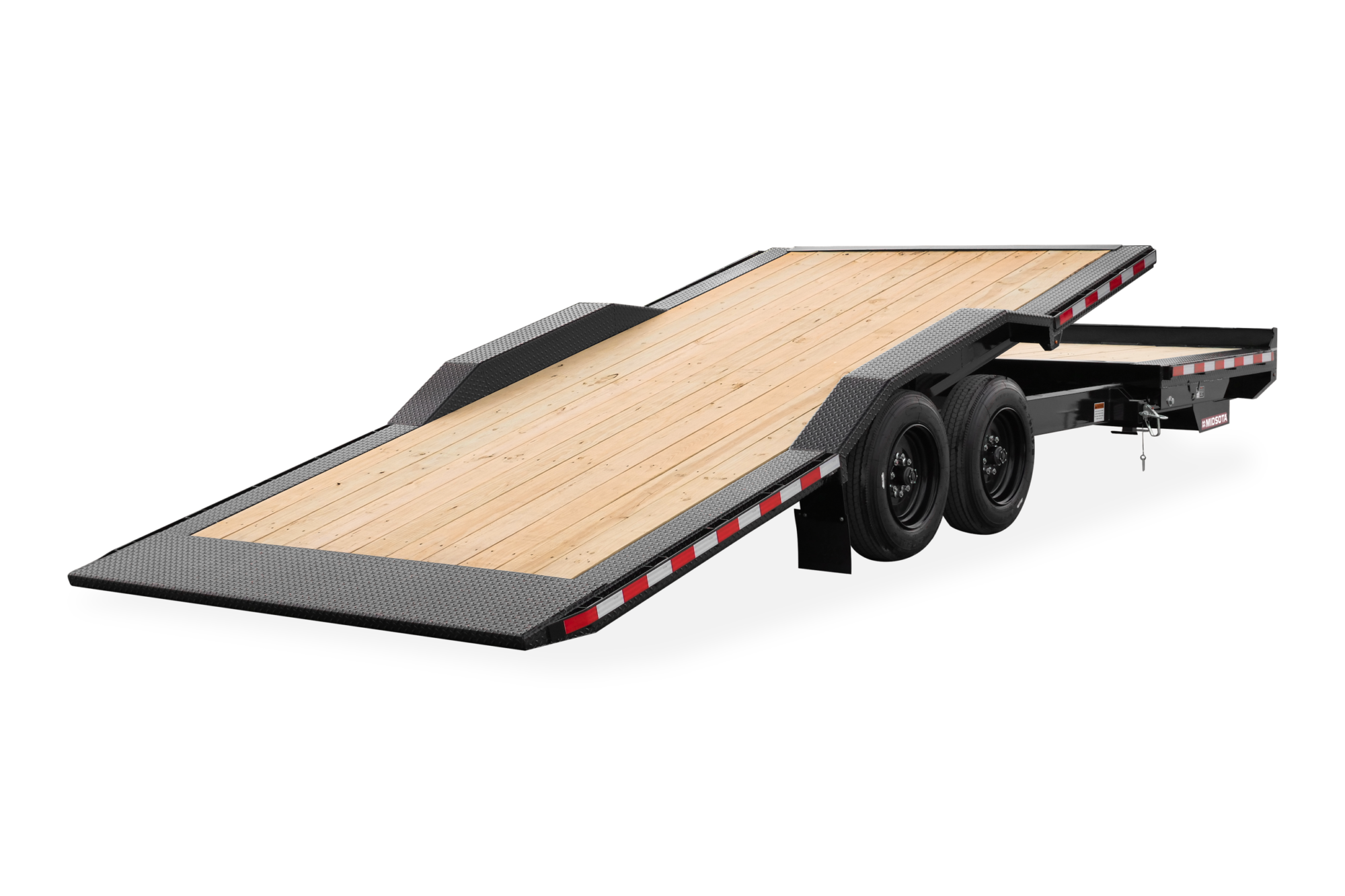

18' Tilting Bed

Provides a seamless loading experience.

Grade 50 3'' Channel Crossmembers

With 16″ on-center spacing, enhances structural strength for superior load support.

Industrial Grade Polymer Finish

Offers long-lasting protection against corrosion and wear.

TBWB Series Tilt Trailer

The TBWB Series wide body tilt trailer is built for maximum convenience and durability, offering a smooth tilting bed for easy loading and unloading. Designed with premium materials and industrial-strength features, this tilt deck trailer is ideal for hauling equipment, vehicles, and heavy loads. With a robust frame and innovative design, these tilt bed trailers deliver long-lasting performance, even in demanding work environments.

Key Benefits

Drive Over Fenders

Allows for easy loading of wider equipment without restrictions.

18' Tilting Bed

Provides a seamless loading experience.

Grade 50 3'' Channel Crossmembers

With 16" on-center spacing, enhances structural strength for superior load support.

Industrial Grade Polymer Finish

Offers long-lasting protection against corrosion and wear.

Explore This Trailer

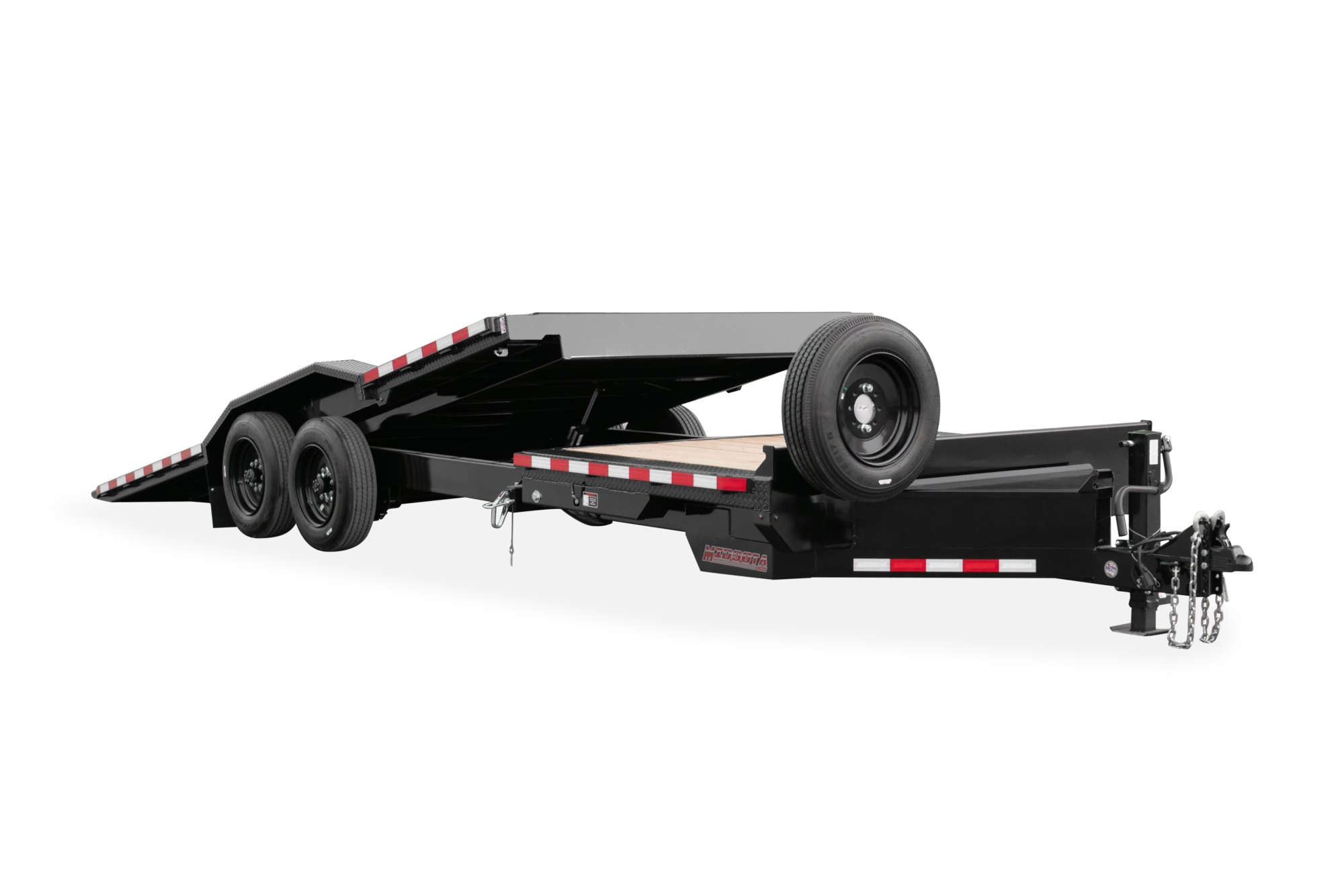

Midsota TBWB Series Tilt Utility Trailer Front Up

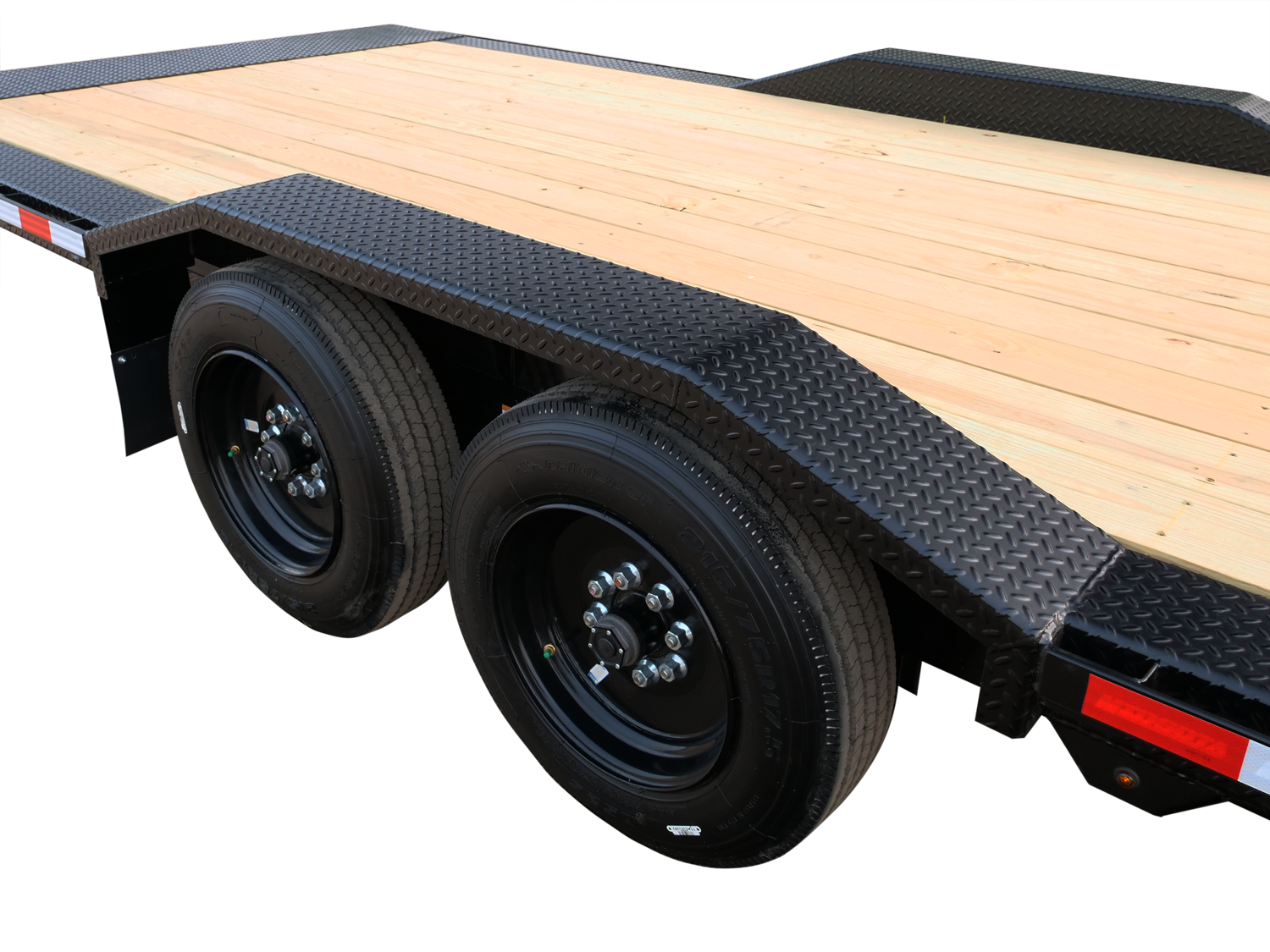

Midsota TBWB Series Tilt Utility Trailer Fenders

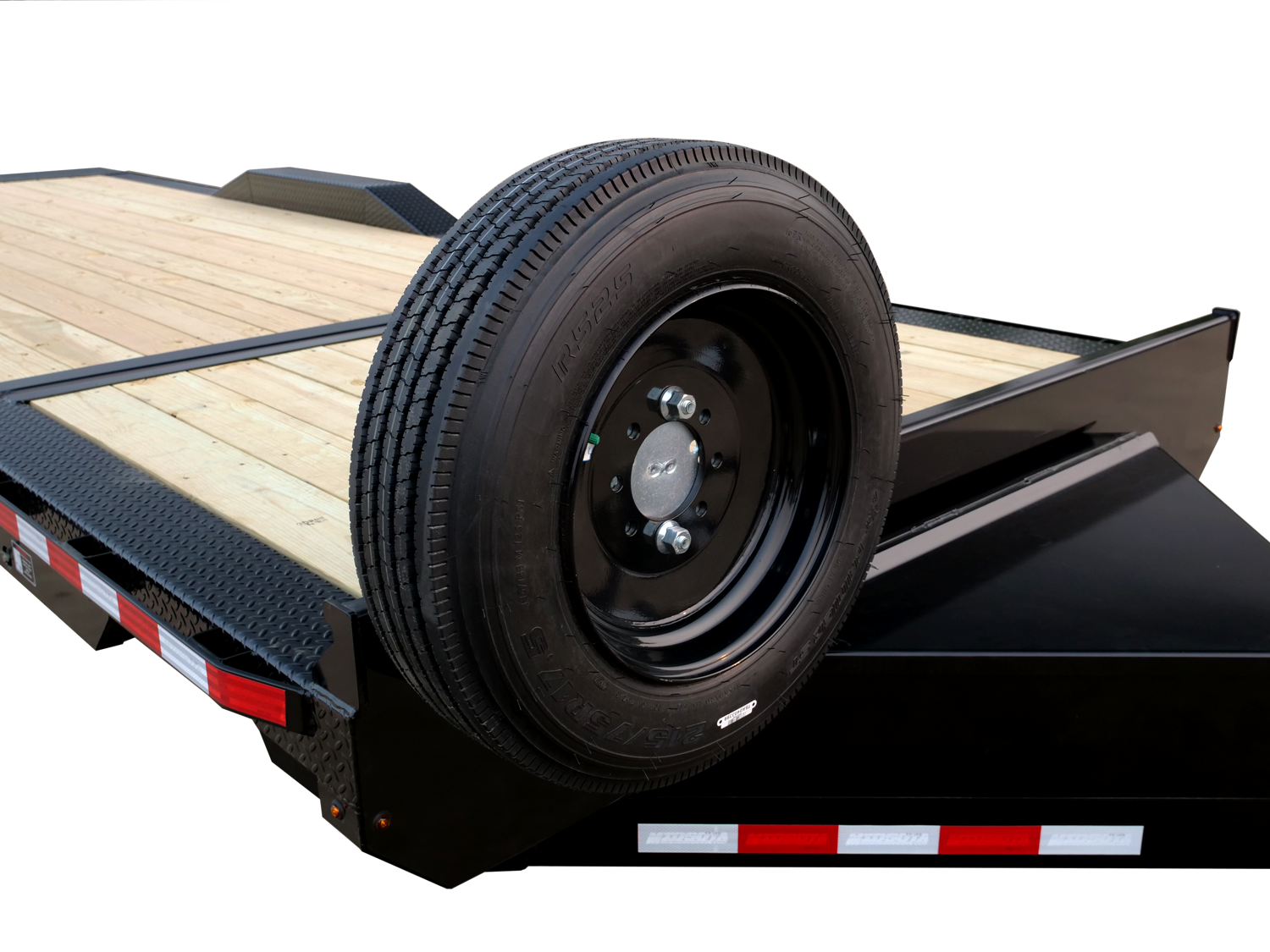

Midsota TBWB Series Tilt Utility Trailer Spare Tire Carrier

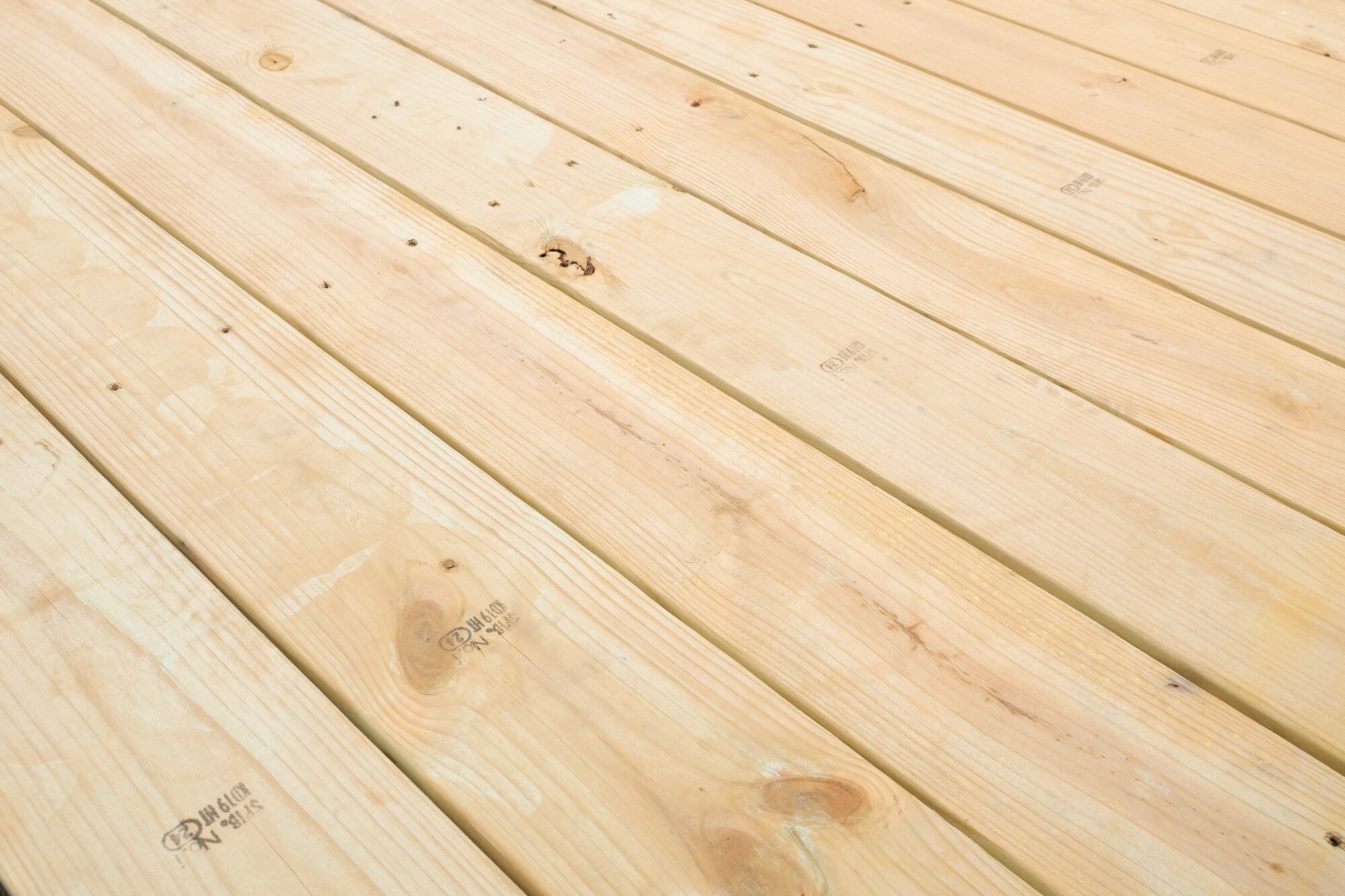

Midsota TBWB Series Tilt Utility Trailer Decking

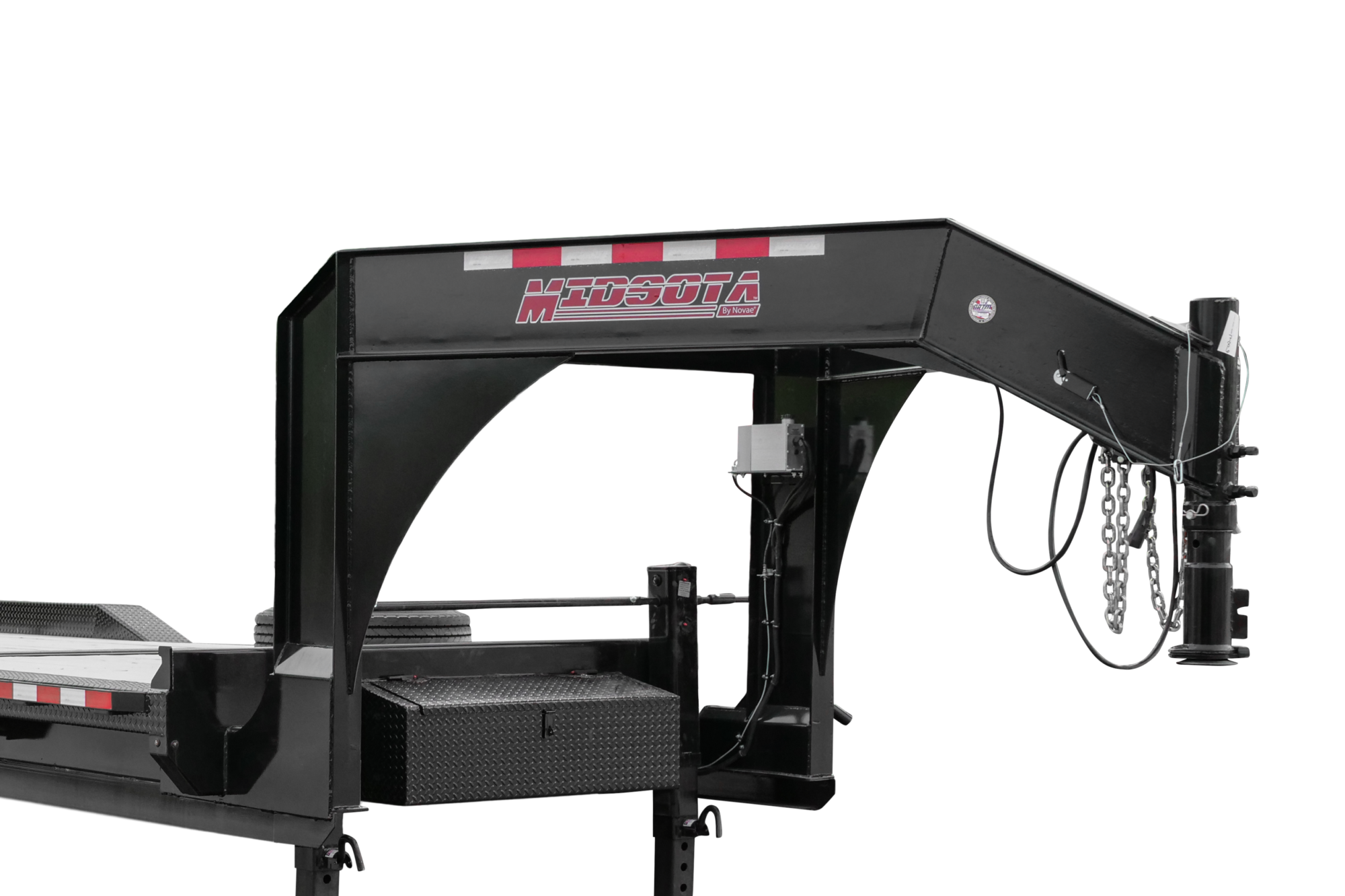

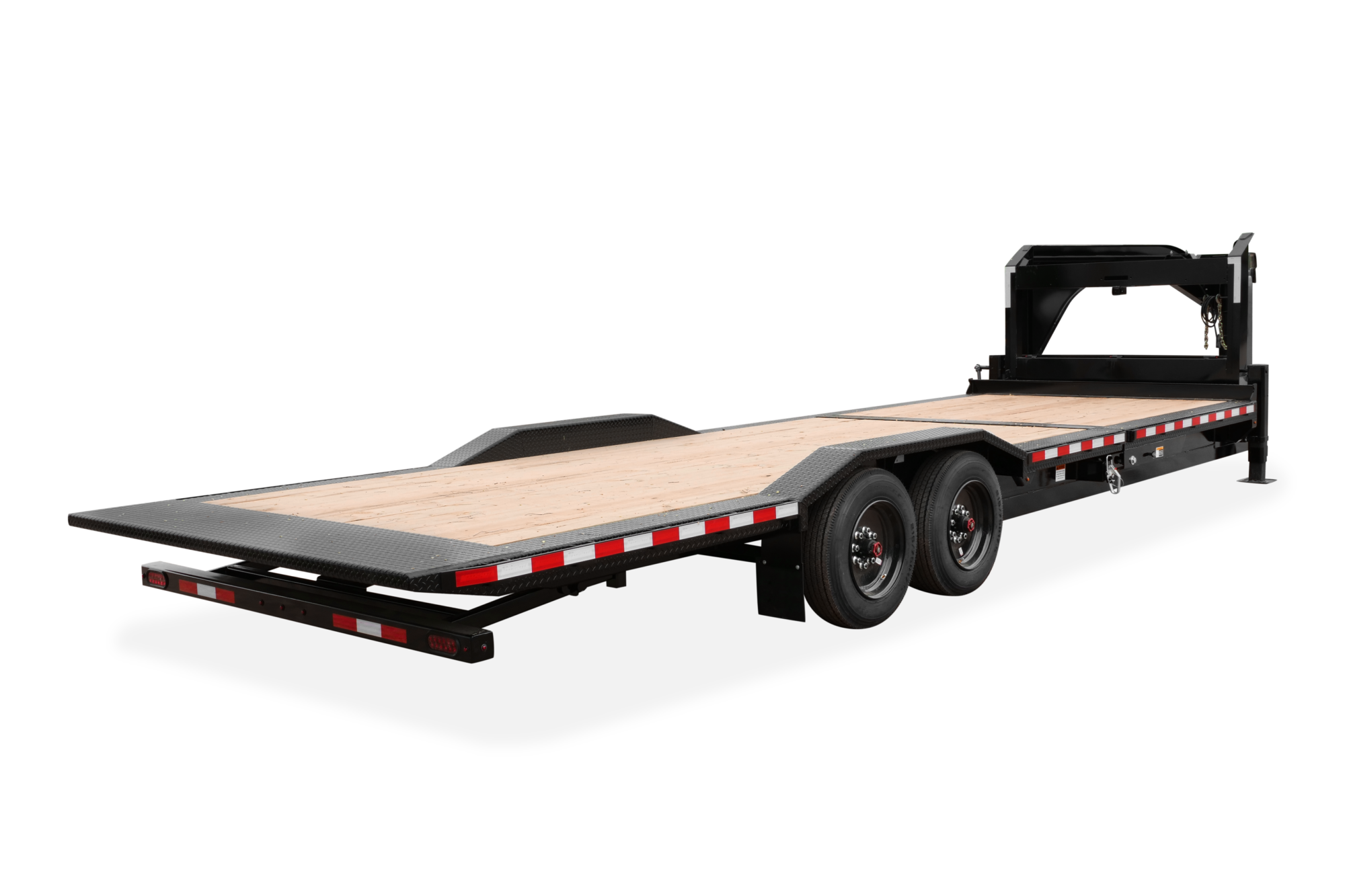

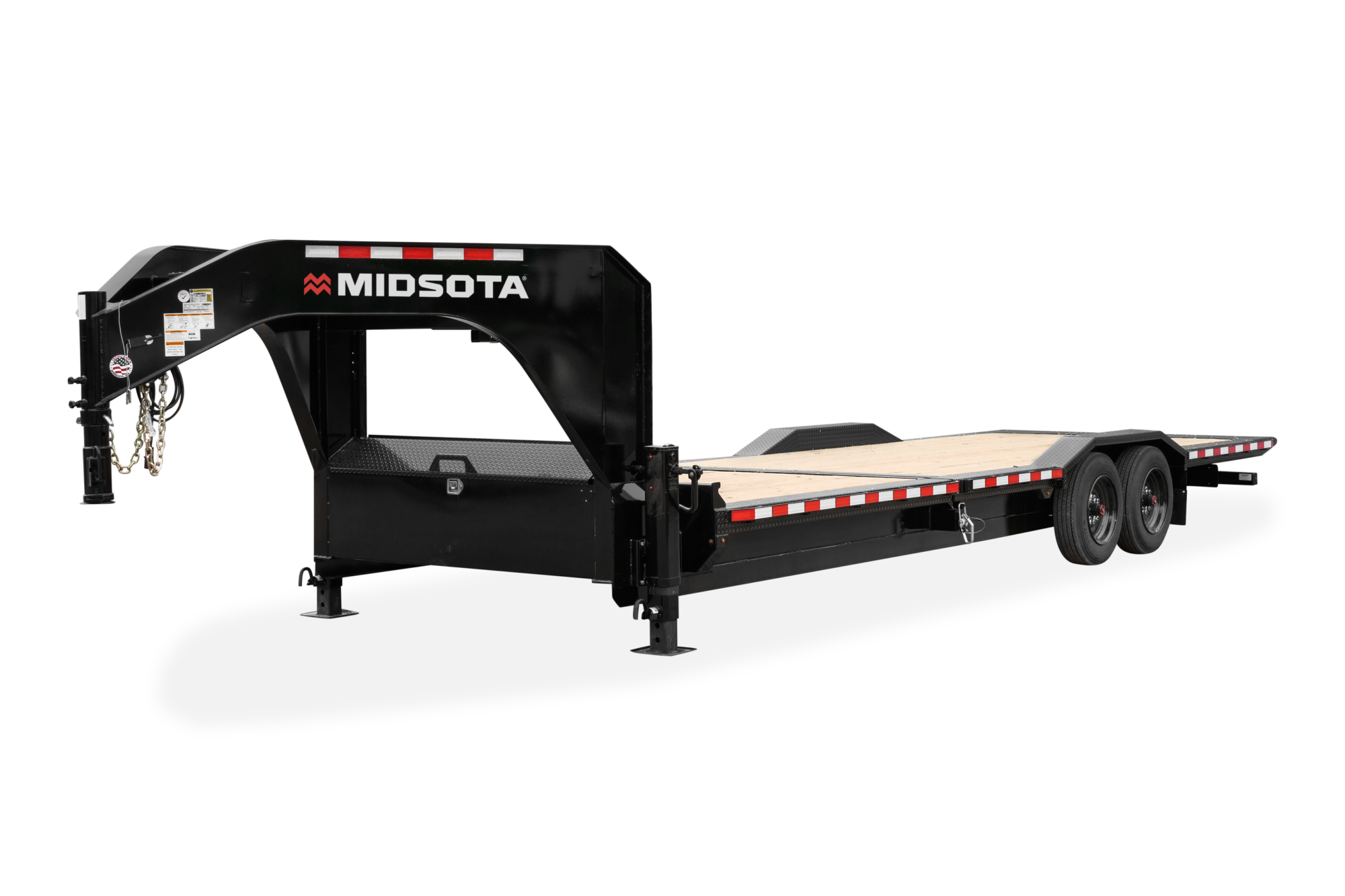

Midsota TBWB Series Gooseneck Tilt Utility Trailer Front Up

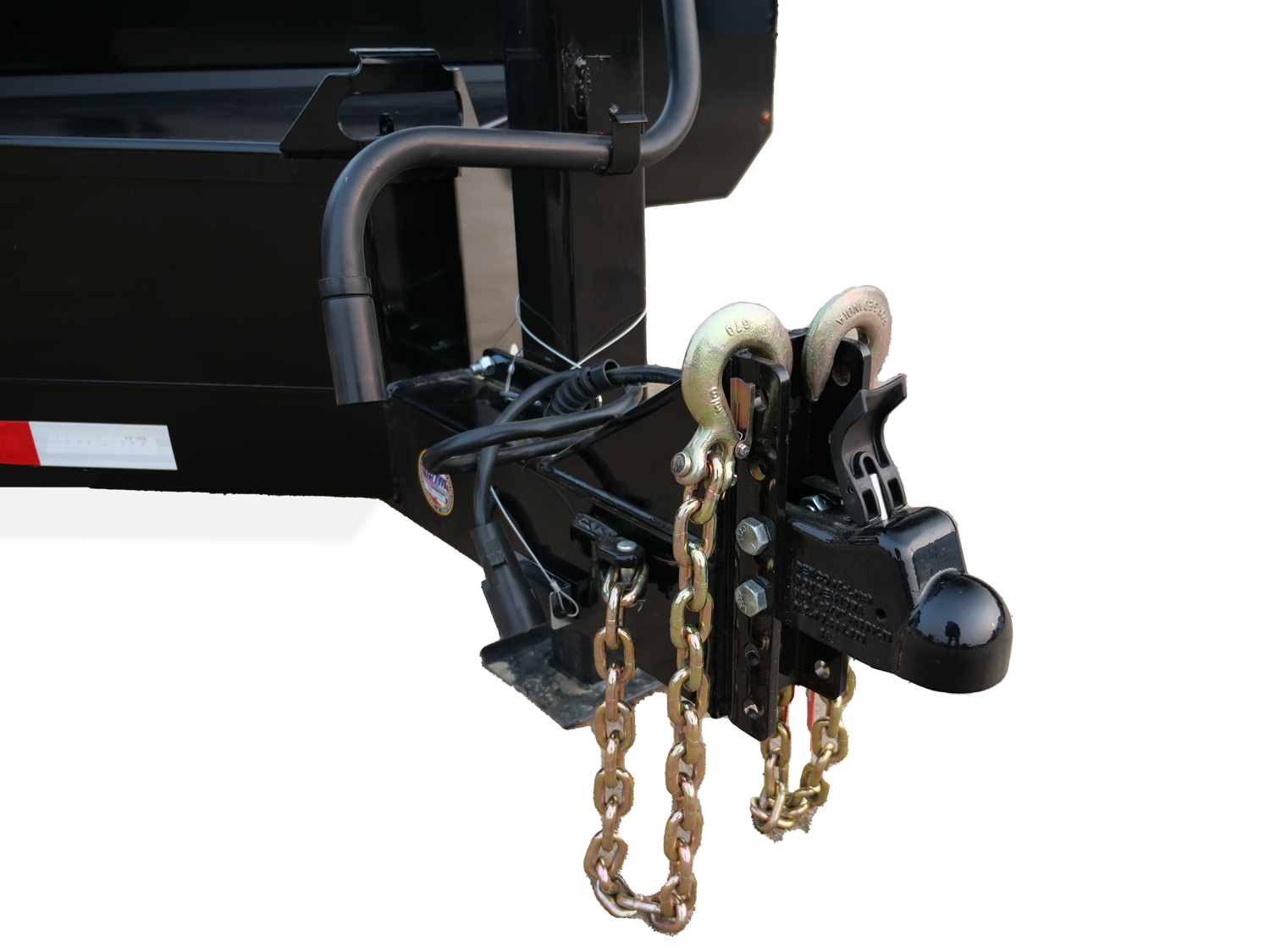

Midsota TBWB Series Tilt Utility Trailer Coupler

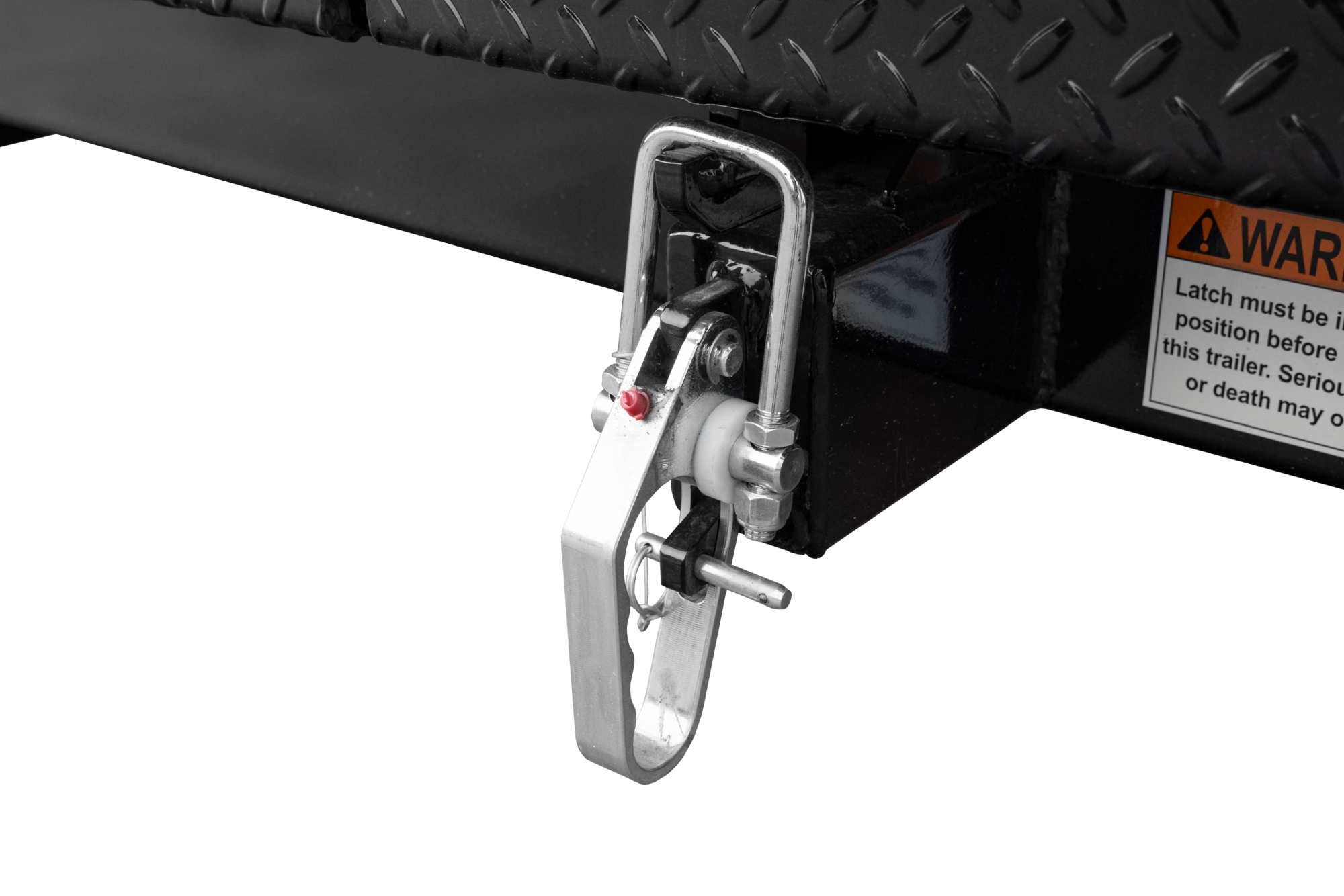

Midsota TBWB Series Tilt Utility Trailer Tilt Latch

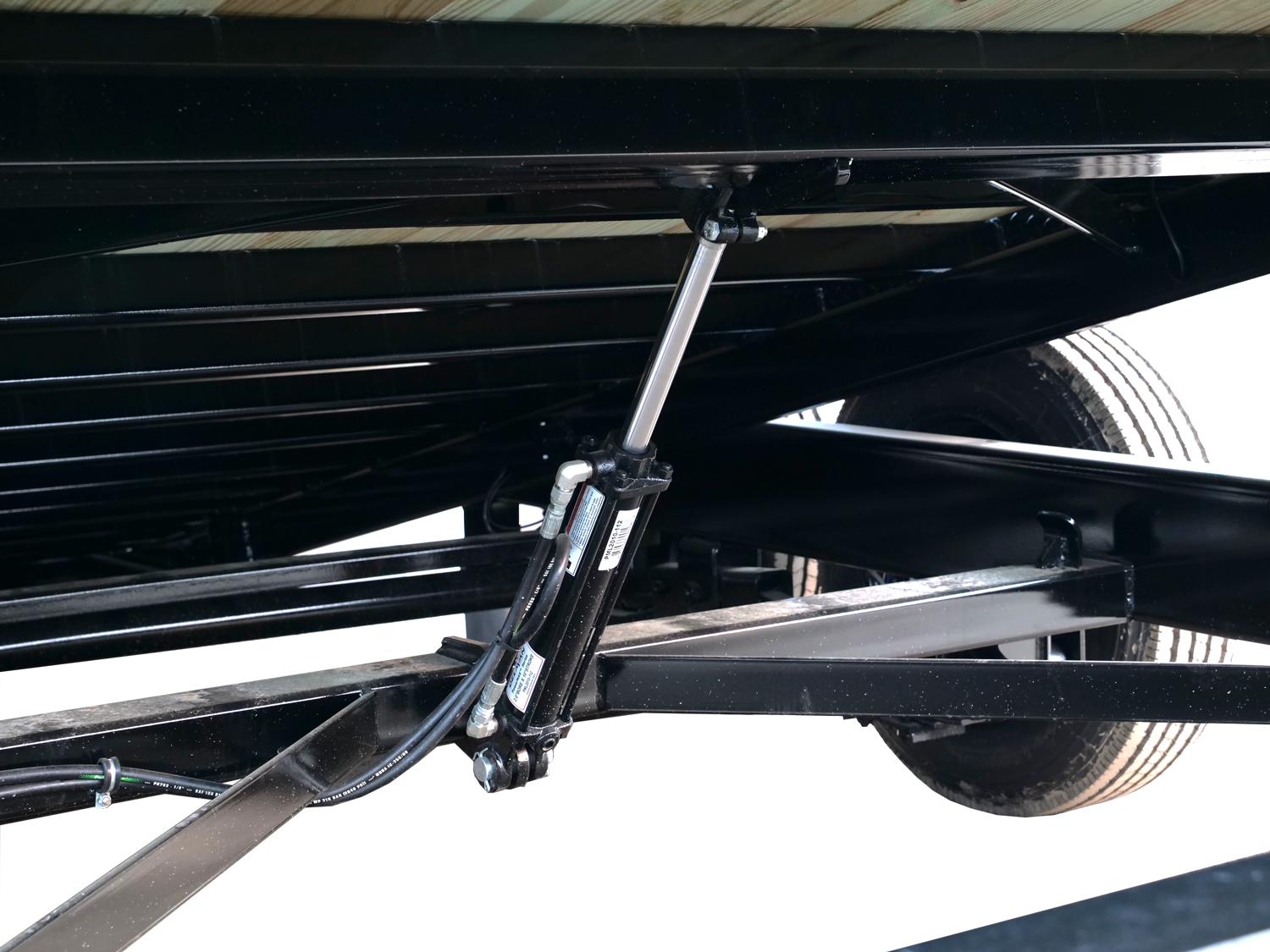

Midsota TBWB Series Tilt Utility Trailer Tie Rod Cylinder

Model Color Options:

White

Standard Colors

Optional Colors

Colors may vary slightly.
Contact your local dealer for color samples.

Why Choose a TBWB Series Tilt Trailer?

Overview

The TBWB Series wide body tilt trailer is engineered to provide a hassle-free hauling solution. Designed for both commercial and personal use, this tilt deck trailer eliminates the need for ramps, making loading and unloading more efficient. Its rugged steel construction, high-strength crossmembers, and premium finish ensure durability for years of reliable use. Whether you’re transporting construction equipment, vehicles, or heavy-duty machinery, these tilt bed trailers provide the strength and stability needed for any job.

Available Models

This series is available in multiple configurations to suit different hauling needs. The TBWB Series tilt trailer offers various 18' tilt deck lengths and stationary decks from 4 to 14' feet, providing flexibility based on load requirements. Boasting a 17,600 pound GVWR, the TBWB Series is designed to accommodate a wide range of equipment and vehicles.

Standard Features

Built with convenience and durability in mind, the TBWB Series includes self-adjusting electric brakes for superior stopping power and 17.5" H range 16-ply tires for improved load capacity. The 27" bed height and 82" width between fenders provide a spacious and easy-to-approach loading area, while the 16" crossmember spacing enhances structural integrity. The hydraulically locking tilt system ensures secure operation, and the treated wood decking offers a reliable surface for cargo. Additional features include a rub rail with stake pockets, no exposed wiring, a cold-weather 7-way plug rated for -85°, LED lights for visibility, a 12K spring return jack for easy hitching, a 2-5/16" adjustable coupler for secure towing, and a five-year frame warranty for long-term confidence.

Options

For those seeking additional customization, the TBWB Series tilt trailer offers several upgrade options. The 10K torsion axles provide improved ride quality and reduced maintenance. A steel toolbox adds convenient storage for tools and equipment. A gooseneck option enhances towing stability for heavier loads. Power tilt functionality makes operation even easier, while a hydraulic tongue jack simplifies hitching and leveling. These upgrades ensure that the trailer meets the specific needs of any user, making it a versatile choice for various hauling applications.

Models

102" x 360"

Midsota TBWB Series
17600 lbs
Model #
NTBWB30-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5543 lbs

102" x 372"

Midsota TBWB Series
17600 lbs
Model #
NTBWB26-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5010 lbs

102" x 384"

Midsota TBWB Series
17600 lbs
Model #
NTBWB32-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5460 lbs

102" x 348"

Midsota TBWB Series
17600 lbs
Model #
NTBWB24-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4760 lbs

102" x 396"

Midsota TBWB Series
17600 lbs
Model #
NTBWB28-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5160 lbs

102" x 264"

Midsota TBWB Series
17600 lbs
Model #
NTBWB22-BP-176
GVWR (lbs)
17600 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
4510 lbs

102" x 360"

Midsota TBWB Series
18400 lbs
Model #
NTBWB30-GN-184
GVWR (lbs)
18400 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
6143 lbs

102" x 396"

Midsota TBWB Series
18400 lbs
Model #
NTBWB24-GN-184
GVWR (lbs)
18400 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5360 lbs

102" x 432"

Midsota TBWB Series
18400 lbs
Model #
NTBWB26-GN-184
GVWR (lbs)
18400 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5610 lbs

102" x 264"

Midsota TBWB Series
18400 lbs
Model #
NTBWB22-GN-184
GVWR (lbs)
18400 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5110 lbs

102" x 444"

Midsota TBWB Series
18400 lbs
Model #
NTBWB28-GN-184
GVWR (lbs)
18400 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
5760 lbs

102" x 492"

Midsota TBWB Series
18400 lbs
Model #
NTBWB32-GN-184
GVWR (lbs)
18400 lbs
GAWR (lbs/axle)
8000 lbs/axle
Curb Weight
6574 lbs

102" x 384"

Midsota TBWB Series
22000 lbs
Model #
NTBWB32-BP-220
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5560 lbs

102" x 396"

Midsota TBWB Series
22000 lbs
Model #
NTBWB28-BP-220
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5260 lbs

102" x 384"

Midsota TBWB Series
22000 lbs
Model #
NTBWB30-BP-220
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5500 lbs

102" x 348"

Midsota TBWB Series
22000 lbs
Model #
NTBWB24-BP-220
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
4860 lbs

102" x 324"

Midsota TBWB Series
22000 lbs
Model #
NTBWB22-BP-220
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
4875 lbs

102" x 372"

Midsota TBWB Series
22000 lbs
Model #
NTBWB26-BP-220
GVWR (lbs)
22000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5110 lbs

102" x 444"

Midsota TBWB Series
23000 lbs
Model #
NTBWB28-GN-230
GVWR (lbs)
23000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5860 lbs

102" x 396"

Midsota TBWB Series
23000 lbs
Model #
NTBWB24-GN-230
GVWR (lbs)
23000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5950 lbs

102" x 432"

Midsota TBWB Series
23000 lbs
Model #
NTBWB26-GN-230
GVWR (lbs)
23000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5710 lbs

102" x 492"

Midsota TBWB Series
23000 lbs
Model #
NTBWB32-GN-230
GVWR (lbs)
23000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
6875 lbs

102" x 384"

Midsota TBWB Series
23000 lbs
Model #
NTBWB22-GN-230
GVWR (lbs)
23000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
5950 lbs

102" x 480"

Midsota TBWB Series
23000 lbs
Model #
NTBWB30-GN-230
GVWR (lbs)
23000 lbs
GAWR (lbs/axle)
10000 lbs/axle
Curb Weight
6370 lbs

Features and Specifications subject to change without notice. Please contact your local dealer for confirmation.
