Hydraulic Dump Trailers

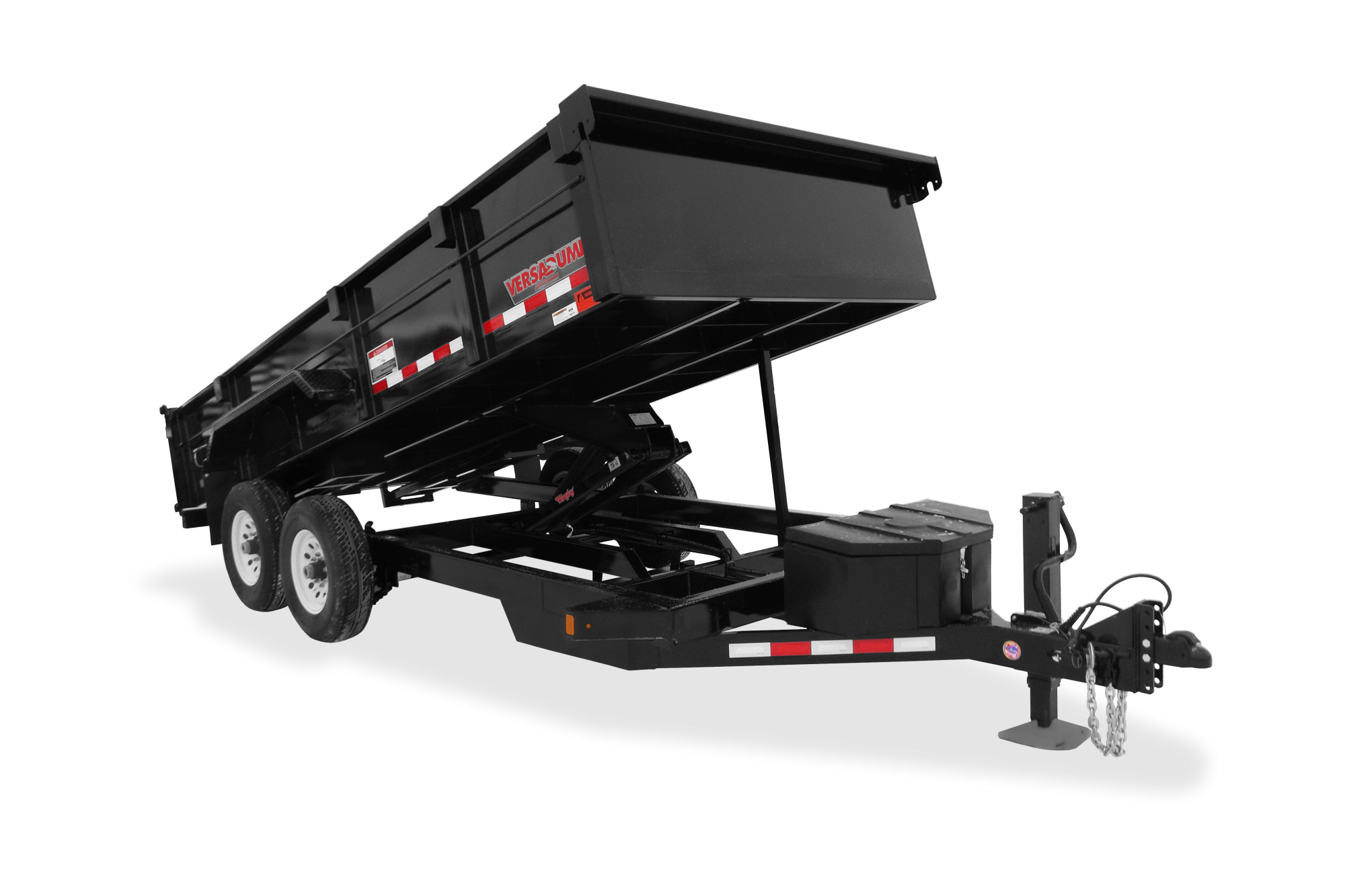

HV Series Dump Trailer

Midsota HV Series

Commercial Grade Dump Trailer

15,400 to 23,100 Gross Vehicle Weight Rating

Available Sizes: 82″ x 12′ // 82″ x 14′ // 82″ x 16′ // 82″ x 18′ // 82″ x 20′

Features

  • Self Adjusting Electric Brakes
  • 16'' E Range 10 Ply Tires (235/80R16)
  • 25'' Bed Height
  • 24'' Tall 11 Gauge (1/8'') Sides
  • 7 Gauge (3/16'') One Piece Floor
  • 16'' Crossmember Spacing
  • Tuck Under 6' Ramps and Carriers
  • 4 D-Ring Tie Downs
  • 3-Way Double Door
  • Tarp Ready
  • 12K Spring Return Jack (Bolt On)
  • Poly Toolbox
  • Midsota Exclusive Indicator Module
  • 12V Deep Cycle Battery
  • Power Up / Gravity Down Pump
  • LED Lights
  • No Exposed Wiring
  • Cold Weather 7 Way Plug (-85°)
  • 2-5/16 EZ Latch Adjustable Coupler
  • PPG Polyurethane Primer & Paint
  • 9 Standard Colors Available
  • On-Board Charger 4 Amp (110V Plug In)
  • Roll Tarp System w/ Lock Rod
  • Spare Tire Carrier (Weld-On)

Available Options

  • 8K Axle
  • Hydraulic Disc Brakes
  • 12'' Crossmember Spacing
  • Adjustable Pintle Ring
  • 12K Hydraulic Jack
  • Tri Axle
  • G Range Tires
  • Aluminum Wheels
  • Hoist Upgrade
  • Spare Tire and Carrier
  • 45'' Tall Sides
  • Swing Side Door
  • Roll Tarp
  • Mesh Ramps
  • Pallet Fork Holders
  • Drop Leg Load Stands
  • Solar Charger
  • On Board Charger
  • Steel Toolbox
  • Contact your local dealer for more options

HV-14 Dump Trailer with Popular Options




Color Options

Not exact color match. Contact your local dealer for color samples.

  • Standard Black
  • Optional Red
  • Optional Orange
  • Optional Gray
  • Optional Blue
  • Optional Yellow
  • Optional Light Green
  • Optional Safety Green
  • Optional Dark Green

Specifications

  • HV-12
  • HV-14
  • HV-16
  • HV-18
  • HV-20
  • GVWR (lbs)
  • HV-12 15,400
  • HV-14 15,400
  • HV-16 15,400
  • HV-18 15,400
  • HV-20 15,400
  • GAWR (lbs/axle)
  • HV-12 7,000
  • HV-14 7,000
  • HV-16 7,000
  • HV-18 7,000
  • HV-20 7,000
  • Curb Weight
  • HV-12 4,120
  • HV-14 4,480
  • HV-16 5,100
  • HV-18 5,720
  • HV-20 6,340
  • Payload
  • HV-12 11,280
  • HV-14 10,920
  • HV-16 10,300
  • HV-18 9,680
  • HV-20 9,060
